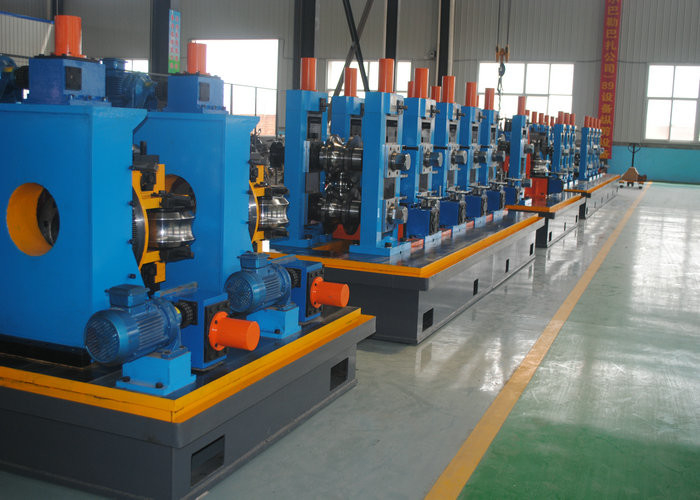

0.8 - 3.0mm Thickness ERW Pipe Mill Line Adjustment By Turbine Worm

0.8 - 3.0mm Thickness ERW Pipe Mill Line Adjustment By Turbine Worm
0.8 - 3.0mm Thickness ERW Pipe Mill Line Adjustment By Turbine Worm 0.8 - 3.0mm Thickness ERW Pipe Mill Line Adjustment By Turbine Worm

Large Image :  0.8 - 3.0mm Thickness ERW Pipe Mill Line Adjustment By Turbine Worm

Product Details:

Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: HG50

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 2.5 months
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets/Year
Detailed Product Description
Adjustment Ty: By Turbine Worm Worm Gearing: Max.80m/min
Cutting Saw: Friction Saw Cutting Pipe Diameter: 21 - 63mm
Max.Thickness For Square Pipe: 0.8-3.0mm
High Light:

erw tube mill

,

stainless tube mills

High frequency welded pipe making machine tube mill
Industry's first two-year free warranty, quality assurance
Passed the IS09001:2000 international standard certificatio





High-frequency welded pipe machine is a straight seam welded pipe machine, and other pipe machine is different from the place of its welding. High-frequency welded pipe machine is the use of high-frequency resistance vortex is the pipe hot melt and condensation to produce pipe. High-frequency welded pipe machine because of the welding speed, more and more people of all ages, such as oil pipe, natural gas and other large pipe are made using high-frequency welded pipe machine.



1.1  erw welding tube mill/pipe making machine:

This equipment is specially used for producingΦ25-Φ76mm, δ1.5-2.5mm stainless steel straight seam welded pipe. It made by refined materials in high precision and equipped with fixed length cutting saw. The main machine includes forming, welding, sizing and straightening device. The composition of equipment is from uncoiler to fixed length-cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.



1.2 Applicable material:

(1)Material: SUS302 stainless steel strip.

(2)The thickness of steel strip: 1.5-2.5mm (As per GB708-88)

(3)The width of steel strip: 80-240mm (±0.2mm)

(4)I.D. of steel coil: Φ450-Φ550mm

(5)O.D. of steel coil: Φ800-Φ1500mm

(6)Maximum weight coil: 2500kgs



1.3 Dimension range of processing steel pipe:

(1) O.D.: Φ25-Φ76mm
(2) Wall thickness: 1.5-2.5mm (Square and rectangle pipe≤2.0mm)
(3) Length: 4-8m



1.4 Product (steel pipe) process flow for BG76 stainless steel erw welding tube mill/pipe making machine:

Raw material (steel coil)---uncoiling---shearing and end welding--non-power leveling---mill-forming---TIG welding---Polishing burrs outside of weld seam---cooling---sizing---roughly straightening---fixed length cutting--- finished pipe---run-out table mill | pipe making machine | pipe mill production line | pipe mill line | carbon steel pipe mill | steel pipe mill | pipe tube mill | new pipe tube mill | welded pipe mill | welded pipe mi

Detailed Images



Descripion of welded pipe making machine
Welded pipe making machine is used to level the fixed strip after slitting line and entry it to forming machine, bend toopenippe by roller, melt the strip edges throuh te High frequency current, squeeze and weld the pipe to be closedby squeeze roll, the high frenency. ERW Pipe making machine is also called ERW pipe mill. Wanxin's full-automatic welded pipe making machine ranks to topest in this industry.



Technic process of welded pipe making machine
Welded pipe making machine



ERW Tube Mill Other Model



Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
