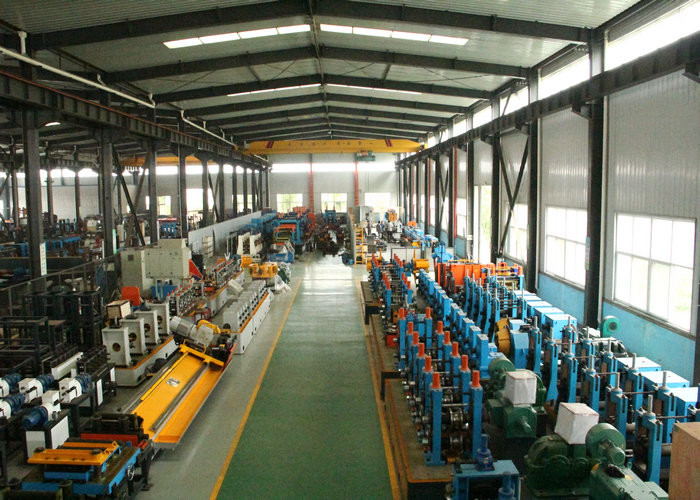

50HZ Frequency Tube Mill Machine , Carbon Steel Pipe Making Machine

50HZ Frequency Tube Mill Machine , Carbon Steel Pipe Making Machine
50HZ Frequency Tube Mill Machine , Carbon Steel Pipe Making Machine 50HZ Frequency Tube Mill Machine , Carbon Steel Pipe Making Machine 50HZ Frequency Tube Mill Machine , Carbon Steel Pipe Making Machine

Large Image :  50HZ Frequency Tube Mill Machine , Carbon Steel Pipe Making Machine

Product Details:

Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG76

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 3.5 months
Payment Terms: L/C, T/T, Western Union
Supply Ability: 70 set per year
Detailed Product Description
Material: Carbon Steel,stainless Steel,low Alloy Steel Pipe Diameter: 21 - 63mm
Product Speed: Max 50m/min Max.Thickness For Square Pipe: 0.8-3.0mm
Certification: CE ISO Worm Gearing: Max.80m/min
High Light:

carbon steel tube mill

,

tube making machine


This equipment is specially used for producingΦ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.
A. Applicable material
1 Raw material: Low-carbon steel,

2 Thickness of steel strip: 1.0-3.5mm
3 The width of steel strip: 60-240mm
4 I.D. of steel coil: Φ450-Φ550mm
5 O.D. of steel coil: Φ800-Φ1200mm
6 Maximum weight coil: 2500kgs
B . Dimension range of processing steel pipe
1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)
3 Length: 4-8m
4 Milling speed: 60-70m/min
5 High-frequency equipment power: 250 KW (Solid state)
6 Voltage:380V/440V,50HZ
C. Main components
1 Uncoiler: 1 set
2 Shearing and butt-welder: 1 set
3 Accumulator: 1 set
4 Forming. Welding &sizing unit: 1 set
5 Computer-controlled tracking cutting saw: 1 set
6 Run-out table: 1 set
7 Solid-state high-frequency welder: 1 set




The model and basic parameters
Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m2)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
