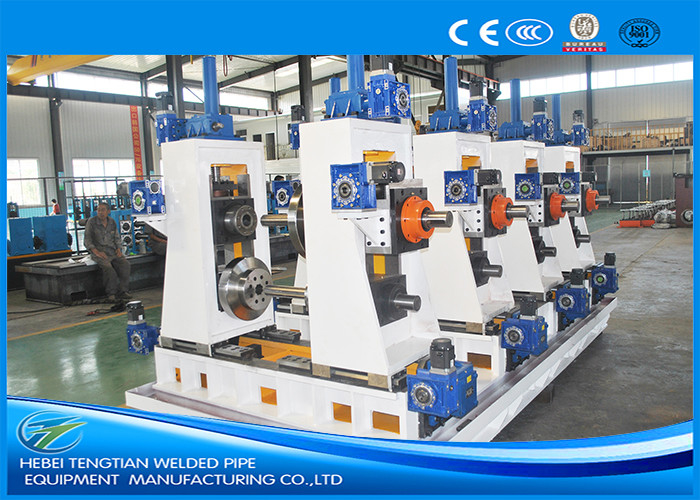

3mm Automatic Carbon Steel Square Tube Mill 30x30-50x50mm

Name: 3mm Automatic Carbon Steel Square Tube Mill 30x30-50x50mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LW200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	LW200

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

LW200

Mill Name:

3mm Thick Square Pipe Forming Machine Automatic Carbon Steel Tube Mill

Product Speed:

Max 80m/min

Pipe Diameter:

30*30-50*50mm

Pipe Thickness:

1.0-3.0mm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Highlight:

High Light

Highlight:

square pipe making machine

stainless steel pipe mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

3mm Thick Square Pipe Forming Machine Automatic Carbon Steel Tube Mill

Key Specifications

Attribute	Value
Product Speed	Max 80m/min
Pipe Diameter	3030-5050mm
Pipe Thickness	1.0-3.0mm
Type of Welding	High Frequency Welding
Special Requirements	Can be customized according to customer needs

Product Description

This automatic square pipe forming machine combines international market demands with our LW series unit and FF forming technology. It features rapid adjustment of forming rollers, significantly reducing product changeover time to improve efficiency and reduce production costs.

Key Advantages:

Produces different size tubes without roll changes
Uses one set of combined molds for multiple specifications
90%+ roller saving rate reduces tooling costs
Only requires adjustment, not replacement, for different products

Production Process

Material (steel coil) → Uncoiler → Shear and Welder → Horizontal (or cage) Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Rough Straightening (Turkey Head) → Cut Off Machine → Run Out Table

Technical Parameters

Parameter	Value
Stands of Forming Mill	7
Stands of Sizing Mill	5
Square Pipe Size	30×30-50×50mm
Square Pipe Thickness	1.0-3.0mm

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
LW200	3030-5050MM	1-3MM	20-80
LW600	6060-150150MM	2-7MM	20-60
LW800	8080-200200MM	1-3MM (or 4-13)	20-40
LW1000	100100-250250MM	3-12.7MM (or4-14)	15-30
LW1200	120120-300300MM	3-14MM	10-25
LW1400	150150-350350MM	4-14MM	8-20
LW1600	200200-400400MM	4-16MM	8-20

Note: Models shown are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your special requirements.
