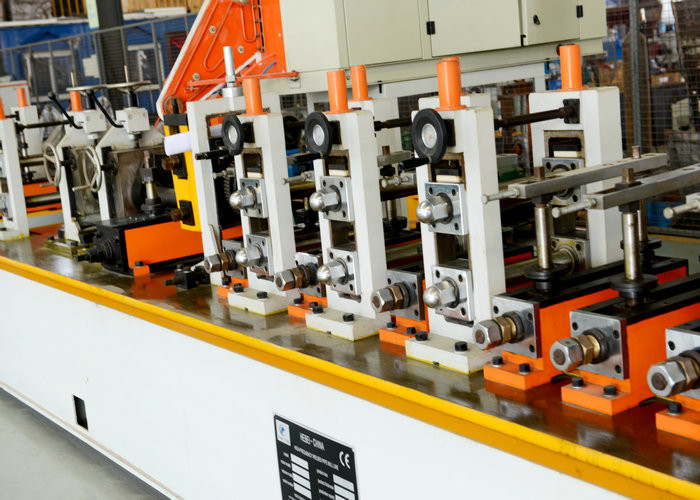

china manufacturer galvanized carbon steel tube rolling line

china manufacturer galvanized carbon steel tube rolling line
china manufacturer galvanized carbon steel tube rolling line china manufacturer galvanized carbon steel tube rolling line china manufacturer galvanized carbon steel tube rolling line

Large Image :  china manufacturer galvanized carbon steel tube rolling line

Product Details:

Place of Origin: CHINA
Brand Name: TENGTIAN
Certification: ISO9001/BV/CE
Model Number: HG50

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Seaworthy packing
Delivery Time: three months
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 units a year
Detailed Product Description
Voltage: 380V Weight: About 10 Tons
Pipe Shape: Round,square Pipe Diameter: 16-50mm
Thickness: 0.5-2.5mm Speed: 30-100m/min
High Light:

stainless tube mills

,

slitting line machine



china manufacturer galvanized carbon steel tube rolling line

Product Description

Our tube rolling line can produce many types of welded pipes,such as H32 H50 H76 H127.

Take H50 tube rolling line for example

The tube rolling line is intended for manufacturing of round pipe of Φ16mm-Φ50mmwith thickness of 0.5mm–2.5mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

Finished product will be of round, square or rectangular pipe.



What is the Features of tube rolling line?

1.It supports many kinds of material like carbon steel, GI and others.

2.One tube rolling line could make a large range of pipe sizes by changing mold.

3.One machine could be used to make square pipe, round pipe by changing mold.

4.The pipe made by this kind of tube rolling line could be used in many areas like water tube, wire pipe and others

What is the working flow of stube rolling line

SteelTape→→ Double-head uncoiler →→Strip-head Cutter and welder→→Spiral accumulator→→Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ Removing External and internal burr→→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table





china manufacturer galvanized carbon steel tube rolling line

What is the specifications of tube rolling line?

name

tube rolling line

a) Steel Pipe Specification



Pipe diameter:

Ø16–Ø50mm

Pipe Thickness:

0.5– 2.5mm

Square Pipe:

14X14mm –40X40mm

Rectangle Pipe:

10X20mm –40X50mm

Pipe Thickness:

0.5–2.0mm

Pipe Length:

6-9m

Length Tolerance:

0-3mm

b) SteelTape Specification



Material:

Low Carbon steel (δb≤500Mpa, δs≤235Mpa)

Steel Tape:



Inner diameter:

Φ580-Φ610mm

Outer diameter:

Φ900-1500mm

Strip steel width:

60mm-200mm

Strip steel thickness

0.5mm-2.5mm

The maximum weight:

3.0 tons

c) Electricity



Dynamic power:

AC380V±10%, 3phases, 50Hz±10%

Control Power:

AC220V±10%, one phase, 50Hz ±10%

Electric installed capacity:

appro 450KW

e) Cooling water



Reservoir for High Frequency equipment:

15 m³, one set

Reservoir for circulating cooling water:

15 m³, one set

f) Compressed air



Pressure:

0.4Mpa

Flow:

0.5m3/h

g)Line speed:

30-90m/min
