ERW Carbon Steel Pipe Welding Machine for Construction Oil Gas

Name: ERW Carbon Steel Pipe Welding Machine for Construction Oil Gas
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LX2000
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	Teng Tian
Certification:	CE / ISO9001
Model Number:	LX2000

Detail Information

Place of Origin:

CHINA

Brand Name:

Teng Tian

Certification:

CE / ISO9001

Model Number:

LX2000

Product Name:

Erw Pipes Carbon Steel Pipe Welding Machine / Welded Tube Mill

Application:

Construction; Oil And Gas; Water Supply

After-sales Servive:

Engineers Available To Service Machinery Overseas

Coil Width:

2000 Mm

Thickness:

Max.25.4mm

Material:

HRC

Colour:

Up To The Customers

Standard:

API 5L

Max. Steel Grade:

Up To X70

Keywords:

Carbon Steel Pipe Welding Machine

Highlight:

High Light

Highlight:

welded tube mill

seamless pipe mill

Trading Information

Minimum Order Quantity:

1 SET

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

6 MONTHS

Payment Terms:

T/T,L/C

Supply Ability:

20 SETS / YEAR

Product Description

ERW Pipes Carbon Steel Pipe Welding Machine / Welded Tube Mill

Product Specifications

Attribute	Value
Application	Construction; Oil and Gas; Water Supply
After-sales Service	Engineers available to service machinery overseas
Coil Width	2000 mm
Thickness	Max. 25.4mm
Material	HRC
Standard	API 5L
Max. Steel Grade	Up to X70

Product Description

High quality ERW pipes 304L stainless straight seam welded steel pipe production system.

Introduction

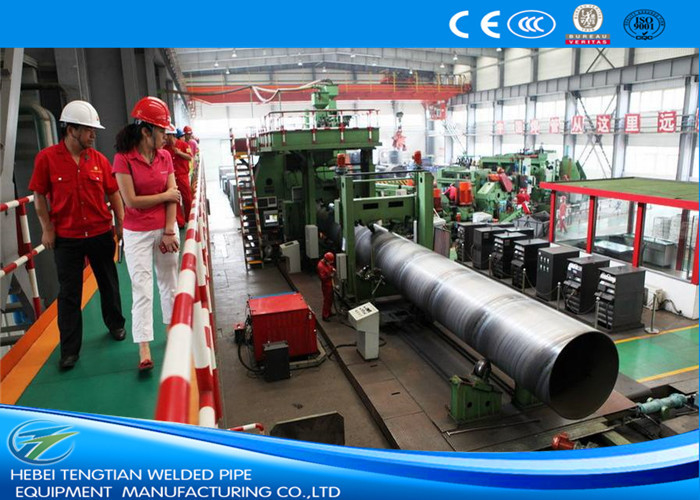

The spiral welded pipe mill rolls low carbon steel/low alloy steel strip into tube by a specific forming angle, then welds it into steel pipe using submerged arc welding technology. This system enables production of large diameter pipes using narrow steel strips.

Function

Liquid delivery: Water supply & drainage systems
Gas delivery: Coal gas, steam and LPG transportation
Structural applications: Piling pipes, structural pipes for bridges, docks, roads, and construction projects

Process Flow

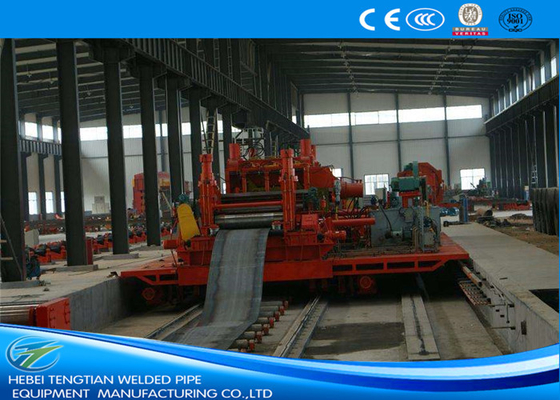

Feeding → Uncoiling → Leveling → Shearing & Butt Welding → Rotary Shear → Edge Milling → Main Drive → Pre-bend & Guide Board → Forming → Inside Welding → Outside Welding → Cutting Off → Pull Out → End-facing & Beveling → Hydrotesting → Collection

Technical Specifications

Series	Min Pipe O.D. (mm)	Max Pipe O.D. (mm)	Min Thickness (mm)	Max Thickness (mm)	Coil Width (mm)	Max Production Capacity (ton/year)	Area (m²)
LX600	219-508	325-820	2-4	4-10	400-600	8000-12000	20×96
LX800	219-508	406-1220	2-4	4-12	400-800	9000-17000	20×96
LX1050	219-508	630-1620	2-4	4-14	450-1050	16000-23000	24×108
LX1250	406-610	820-1620	3-6	8-18	500-1250	26000-35000	24×108
LX1550	406-610	1420-3200+	3-6	12-25.4+	500-1550	36000-76000	26×125
LH2000	406-610	2020-3200+	4-6	20-25.4+	1000-2000	77000-93000	-
