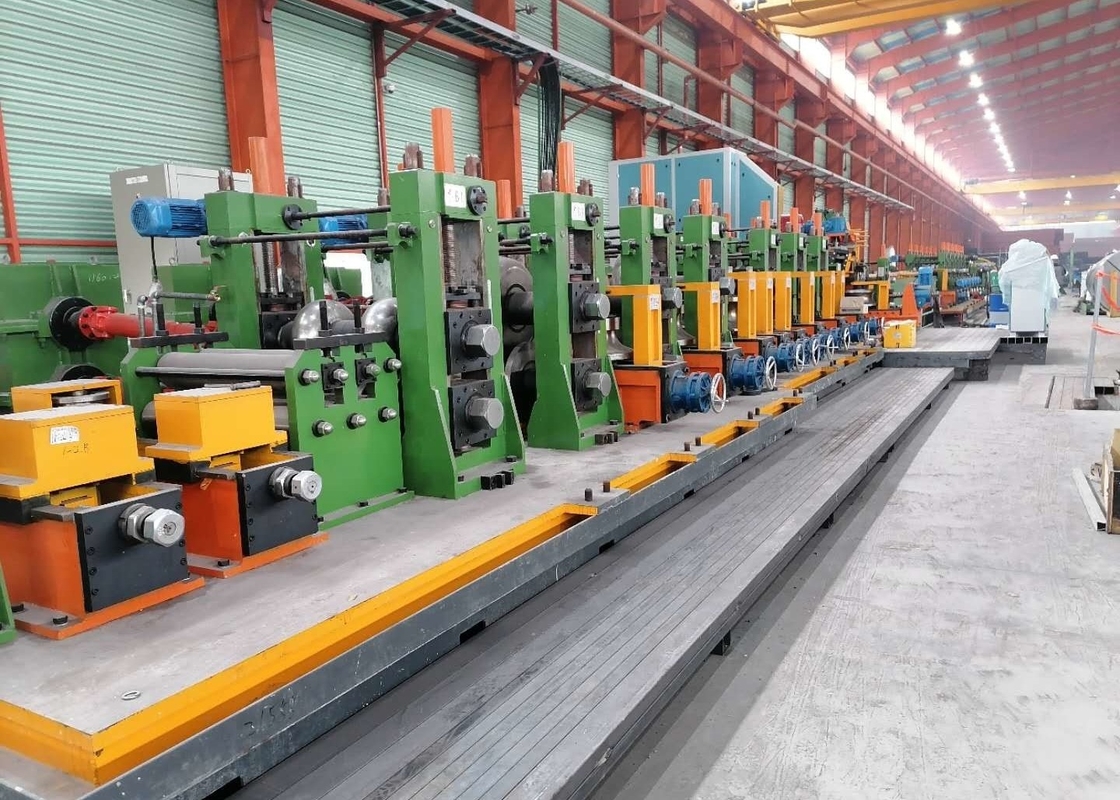

ERW Steel Pipe Production Line 30-50m/min High Frequency Welding

Name: ERW Steel Pipe Production Line 30-50m/min High Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG165
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	HG165

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

HG165

Forming Method:

Cold Roll Forming By Rollers

Welding Type:

High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Feature:

High Precision; More Stable; High Speed;

Customized:

Machine Designing As Per Customer Requirement

Welding Speed:

30-50m/min

Raw Material:

HRC, CRC, Galvanised Steel

Name:

Erw Straight Seam Weld Steel Pipe Production Line

Highlight:

High Light

Highlight:

erw steel pipe production line

50m/min steel pipe production line

erw steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

2 Months - 4 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

ERW Straight Seam Weld 50m/Min Steel Pipe Production Line

Key Specifications

Model Number	HG165
Place of Origin	Hebei, China (Mainland)
Molding Speed	30-50m/min
Pipe Diameter	60-165mm
Pipe Thickness	3-7mm
Voltage	380V/220V
Power	600KW
Certification	ISO9001, CE, BV
Pipe Shape	Rectangle, Round, Square
Material of Pipe	Carbon Steel, Stainless Steel, Galvanized Steel

Product Features

Cold Roll Forming by Rollers
High Frequency Welding Technology
Cold Saw & Friction Saw Cutting
High Precision and Stability
Custom Machine Design Available
Welding Speed: 30-50m/min
Compatible with HRC, CRC, and Galvanized Steel

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Technical Description

This high frequency straight seam welded pipe production line processes steel belt through a feeding unit, where rollers form it into tube billet steel. The high frequency proximity effect and skin effect instantly heat the strip edges to welding temperature, with squeezing rollers completing the weld. The pipe then undergoes water cooling, sizing, and straightening to meet required specifications.

The production line incorporates innovative design elements from domestic and international equipment, optimized for operational simplicity and maintenance ease. With high machining quality and assembly precision, it produces electric welded steel pipes with exceptional accuracy.

Available Models

Model	Diameter Range	Pipe Thickness	Molding Speed	Motor Power	Mechanical Area
HG20	8-20mm	0.3-1mm	30-120m/min	55KW	7×50m³
HG32	12-32mm	0.3-2.0mm	30-120m/min	75KW	7×50m³
HG50	16-50mm	0.8-2.5mm	30-110m/min	110KW	7×60m³
HG60	20-60mm	0.8-3mm	30-100m/min	132KW	7×65m³
HG76	12-76mm	1-3mm	30-100m/min	320KW	8×80m³
HG89	32-89mm	1-4mm	30-80m/min	350KW	8×80m³
HG114	45-114mm	1.5-5.0mm	30-60m/min	400KW	10×100m³
HG165	60-165mm	3-7mm	30-50m/min	600KW	10×110m³
HG219	114-219mm	4-8mm	20-40m/min	800KW	12×150m³
HG273	114-273mm	4-10mm	15-30m/min	1000KW	18×160m³
HG325	165-325mm	4-12mm	10-30m/min	1200KW	18×180m³
HG426	165-426mm	4-16mm	8-25m/min	1400KW	18×180m³
HG508	219-508mm	4-20mm	8-20m/min	2000KW	21×180m³

Our Services

Installation Support: We provide engineers for machine installation and worker training
Warranty: One year quality guarantee with lifetime repair support
Comprehensive Support: Pre-sale services including workshop design and production output planning
After-sales Service: Installation, training, and skilled engineer support
Extended Support: Option for engineers to work onsite for several months to improve output and reduce waste
Project Design: Complete project design services for stainless steel and carbon steel pipe production
Logistics: We handle loading and shipping arrangements
