Friction Saw Cutting SS Tube Mill Machine Worm Gearing Customized Heavy Duty

Friction Saw Cutting SS Tube Mill Machine Worm Gearing Customized Heavy Duty
Friction Saw Cutting SS Tube Mill Machine Worm Gearing Customized Heavy Duty Friction Saw Cutting SS Tube Mill Machine Worm Gearing Customized Heavy Duty

Large Image :  Friction Saw Cutting SS Tube Mill Machine Worm Gearing Customized Heavy Duty

Product Details:

Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG38

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 3 months
Payment Terms: L/C, T/T
Supply Ability: 50 Sets/Year
Detailed Product Description
Material: Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel Adjusting: Worm Gearing
Running Speed: Max.120m/min Pipe Shape: Round, Square & Rectangular
Pipe Diameter: 12 - 38mm Max.Thickness For Round Pipe: 0.5-2.0mm
Welding Type: High Frequency Welding Cutting Saw: Friction Saw Cutting
High Light:

erw tube mill

,

stainless tube mills

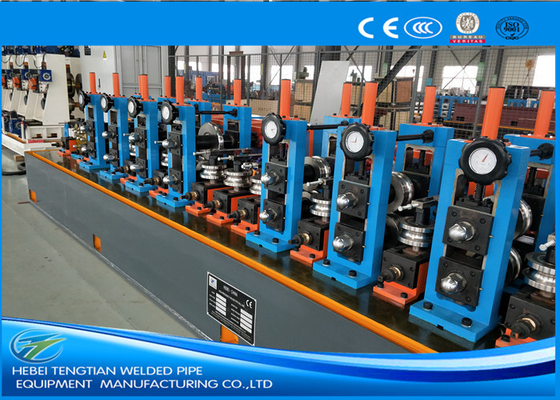

HG38 high precision high speed ERW pipe mill machine



The mill is used to manufacture of round pipe of Φ12mm-Φ38mm with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.



Product Process:



material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→

HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table



General introduction of erw pipe mill

KJ Series Straight Seam High Frequency Steel erw pipe mill lines are used to manufacture welded steel pipes of diameter range from Φ7mm-Φ219mm, wall thickness range 0.2mm-8.0mm.



They are also used to produce profiled pipes within the limit of processing round pipes, such as the square pipes,rectangular pipes, oval pipes,etc.



After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is not only economical but also practical.



Applied raw material of erw pipe mill

Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc
