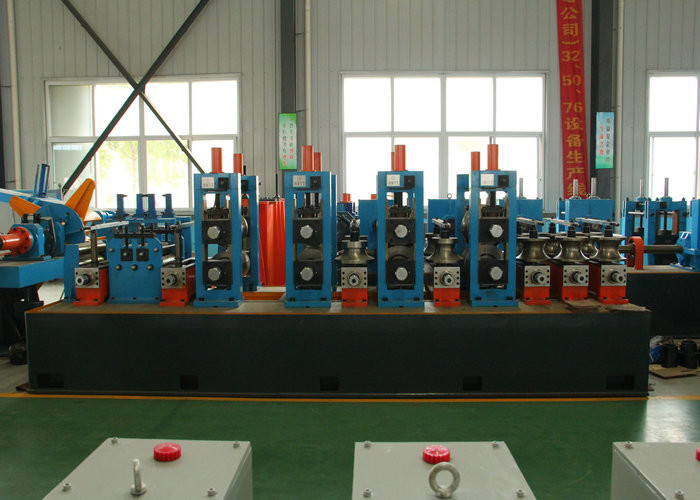

HG76 ERW Tube Mill for 12-76mm Carbon Steel Pipes

Name: HG76 ERW Tube Mill for 12-76mm Carbon Steel Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Product Name:

HG76 Automatic ERW Round Tube Making Machine Carbon Steel Tube Mill

Model:

HG76

Diameter Range:

12-76mm

Thickness:

1-3mm

Molding Speed:

30-100m/min

Material:

Carbon Steel，Stainless Steel

Motor Power:

320kw

Keywords:

ERW Round Tube Making Machine

Highlight:

High Light

Highlight:

erw tube mill

stainless tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

2.5 months

Payment Terms:

L/C,T/T,Western Union,D/P

Supply Ability:

100 Sets/Year

Product Description

HG76 Automatic ERW Round Tube Making Machine Carbon Steel Tube Mill

The HG76 Automatic ERW Round Tube Making Machine is designed for high-efficiency production of precision welded pipes with diameters ranging from 12mm to 76mm and wall thicknesses from 1mm to 3mm.

Attribute	Value
Model	HG76
Diameter Range	12-76mm
Thickness	1-3mm
Molding Speed	30-100m/min
Material Compatibility	Carbon steel, Stainless steel
Motor Power	320kw

Product Specifications

Pipe Dimensions

Round Pipe OD: 12mm-76mm
Square Tube: 25mm×25mm to 70mm×70mm
Wall Thickness: 1mm-3mm
Length: 6-12m (±3mm tolerance)

Material Compatibility

Carbon steel coil (GB Q195-Q345)
Alloy steel coil
API 5L X42-X80

Production Specifications

Production Speed: 30-100m/min
Operational Direction: Configurable left-to-right or right-to-left

Production Line Process

Uncoiling
Shear & butt welding
Cage looping (Accumulating)
Forming
HF welding
Bead removal & cooling
Sizing
Cutting
Conveying & downloading
Packing & warehousing

Machine Components

Double-reel Mechanical Uncoiler
Shear & Butt Welder
Cage Loop (Accumulator)
Tube mill
Solid State H.F. welder
NC Flying Saw
Output Rollway
Rollers

Our Services

Installation & Training: On-site engineer support for machine setup and operator training
Warranty: 1-year quality guarantee with lifetime repair support
Pre-Sale Services: Workshop design and production output planning
Post-Sale Support: Ongoing technical assistance and engineering support
Extended Engineering: Option for long-term engineer support (months to 1 year) for production optimization
Project Design: Comprehensive project planning for pipe manufacturing facilities
Logistics: Complete loading and shipping coordination
