High Frequency ERW Pipe Mill Line , Stainless Steel Tube Mill

High Frequency ERW Pipe Mill Line , Stainless Steel Tube Mill
High Frequency ERW Pipe Mill Line , Stainless Steel Tube Mill High Frequency ERW Pipe Mill Line , Stainless Steel Tube Mill High Frequency ERW Pipe Mill Line , Stainless Steel Tube Mill

Large Image :  High Frequency ERW Pipe Mill Line , Stainless Steel Tube Mill

Product Details:

Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiated
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 2.5 months
Payment Terms: L/C, T/T
Supply Ability: 50 Sets/Year
Detailed Product Description
High Light:

erw tube mill

,

slitting line machine

China HF ERW steel tube and pipe mill High Frequency Electric Resistance Welded Steel Tube and Pipe Forming Line



This line is used to manufacture welded steel pipe of Φ32mm-Φ140mm with 1.0mm-5.0mm of wall thickness, can produce Square pipe 25*25 - 110*110mm.

After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.



Main technical parameters:

Decoliler

coil inner diameter:450-550mm coil max width:300mm 3.max carrying capacity: 1500kgUsage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system

Leveling system:

Usage:Put the raw material(steel plate) through the beach to manufacture and

process,it can guarantee that the products are neat, parallel and everything is uniformity.

Please refer to the equipment regulation to know the function of locate angle iron.

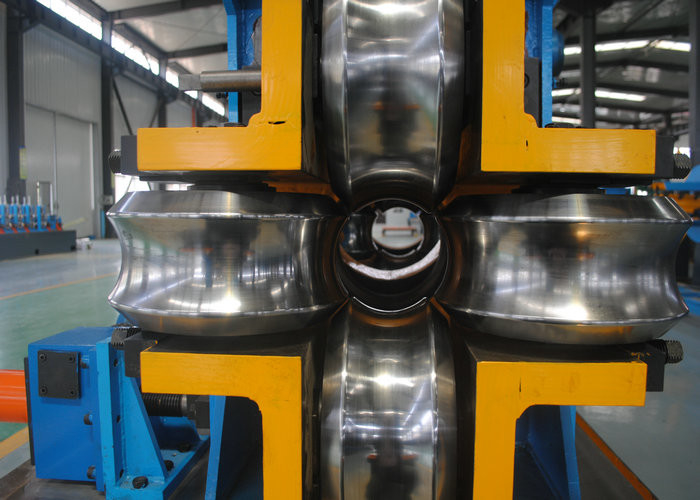

Main roller system:

1.Shaft material & rollers material & shaft diameter45# steel adjustable treatment; 45# steel, polished, plate of chrome 0.05mm; 60mm 2. power: 101kw 3. Transport; Motor; chain drive 4. Forming speed; 20m/min Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.



Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62

Shearing system

Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12 quenched Power supply : hydraulic power Components:It contains one set of blade, one hydraulic tank and one cutter machine.



Brief introduction of ERW tube mill & pipe mill

  • The ERW tube mill & pipe mill is a series of machines that builds longitudinal weld seam tubes and pipes with steel strips of certain width.
  • It starts by uncoil and flatten the slitted steel coils into steel strips.
  • The flattened steel strips will then be inserted into the forming machine and the roller tolling in the machine will roll the strip to round pipe shape.
  • The rolled strips will then be sent into the weld box where the tube is welded by a high frequency solid state welder.
  • The welded tubes will be formed to expected shape or size in a sizing machine. Finally the tubes will be cut to length and bundled.



Product advantage:

  1. High precision
    between level roller jumps 0.01,between frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1,steel pipe diameter and roundness error≤0.08
  2. Use Japanese technology to make foreign clients requirment who need the high accuracy requirement
  3. Schedulable use the worm gear and worm adjustment, the adjustment precision is high, energy accurately
  4. The scraping scar can be adjusted 3D adjustment , scraper can along the steel circle ±20 ° rotation.
  5. Round become square is Turkish head push square, can reduce mold weight, forming stable, uniform R Angle.
  6. Level up shaft increase nylon damping block, reduce the impact to the shaft and bearing.

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse



Specifications:

1. Raw Material

1 Mateairal applcaition Hot or cold rolled steel strips, galvanzied steel strips
2 Material grade Low-carbon steel, low alloy steel: δs≤345Mpa
3 ID of the steel strips Φ508-Φ610mm
4 OD of the steel strips Φ800-Φ2000mm
5 Coiler weight Max.4000kg





















2. Production Range:

Round Pipe 32- 140mm Thickness: 1.0-5.0mm
Square Pipe 25*25- 110*110mm Thickness: 1.0-4.0mm
Rectangular Pipe 20*30 - 90*120mm Thickness: 1.0-4.0mm



3. H.F. Welder: GGP300Kw Solid State High Frequency Welder

4. Line Spees: Max.70m/min

5. Tube Length: 6-12m

6. Cutting Accuracy: ±3mm

7. Electric installed capacity: appro. 500KW

8. Size of whole line: about 80X9mHigh Frequency ERW Pipe Mill Line , Stainless Steel Tube Mill 0High Frequency ERW Pipe Mill Line , Stainless Steel Tube Mill 1



Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
