|Type:||Carbon Steel Slitting Machine||Special Require:||Can Design According To The Customer|
|Steel Thickness:||0.5-4.0mm||Product Speed:||Max 120m/min|
|Material:||Carbon Steel,stainless Steel|
sheet metal slitter machine,
strip slitting machine
steel coil slitting machine
Specification for ZJ1212*3mm steel coil slitting machine
I. Steel coil slitting machine General introduction
Steel coil slitting machine is used to uncoil and level the coil plate, slit the steel plate by rotary shearing unit, then recoil the plate by recoiler, at last pack the coil.
1) Coil material: cold/ hot rolled steel
2) Coil thickness: 0.6~3.0mm;
3) Coil width:500~1212mm
4) Coil ID: Φ508~Φ760mm
5) Coil OD: Φ1000~Φ1600 mm
6) Coil maximum weight:18MT
2. Steel coil slitting machine Technical process
Loading coil — uncoiler — straightening head & pinching & leveling machine — hydraulic shearing machine — vertical roll— rotary slitting machine — scrap winder — accumulator — tension device — recoiling machine — discharging car
All the above workers should take part in installing the slitting line during installation and debugging, because our engineer could train them about that how to operate and know their machine while installing.
3. Steel coil slitting machine Power supply needed:
Motors of the line without optional machines: 260KW
6. Installation for the user’s reference.
(Plant size details please see Layout drawing):
1) Estimated area needed for the machines:21M×9.5M(L×W)
2) Line foundation drawing will be provided by manufacturer, and the user should build the available foundation according the drawing.
3) 20 tons capacity lifters /1 unit
4) Power supply needed:
Motors of the line: 260KW

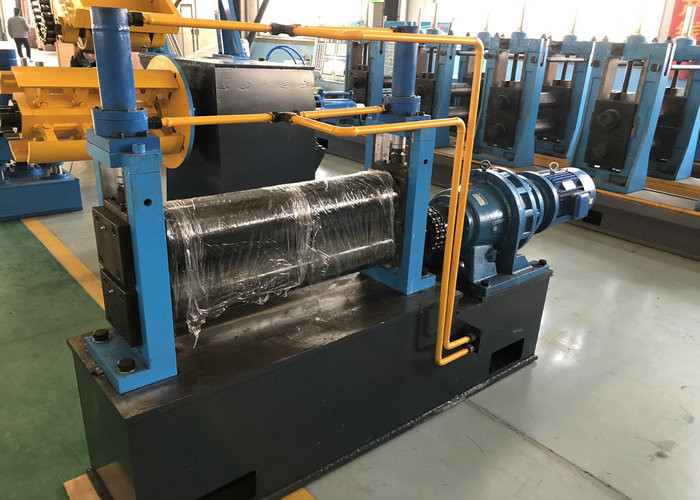

3. Steel coil slitting machine DETAILED MACHINES PHOTOS
If need more detailed information of new or used steel coil slitting machine, please contact with me:
