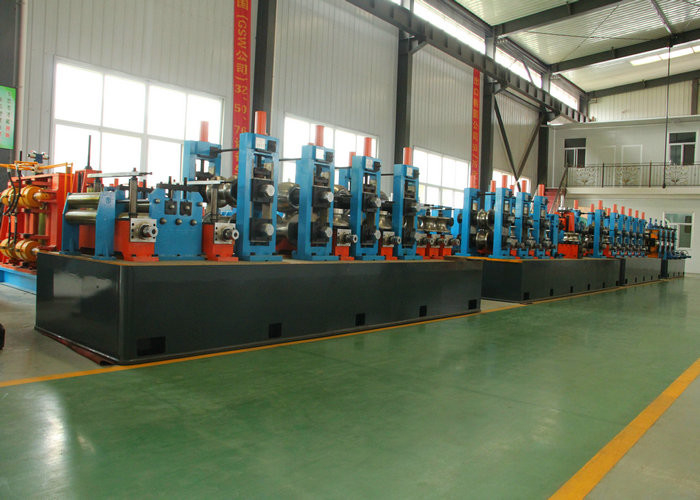

Welded ERW Pipe Mill Machine / Seamless Pipe Mill BV ISO9001 Standard

Welded ERW Pipe Mill Machine / Seamless Pipe Mill BV ISO9001 Standard
Welded ERW Pipe Mill Machine / Seamless Pipe Mill BV ISO9001 Standard Welded ERW Pipe Mill Machine / Seamless Pipe Mill BV ISO9001 Standard Welded ERW Pipe Mill Machine / Seamless Pipe Mill BV ISO9001 Standard

Large Image :  Welded ERW Pipe Mill Machine / Seamless Pipe Mill BV ISO9001 Standard

Product Details:

Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG76

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: three months
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 set per year
Detailed Product Description
Material: Carbon Steel,stainless Steel,low Alloy Steel Pipe Diameter: 21 - 63mm
Product Speed: Max 50m/min Max.Thickness For Square Pipe: 0.8-3.0mm
Certification: CE ISO Worm Gearing: Max.80m/min
High Light:

erw tube mill

,

slitting line machine



COMPANY DESCRIPTION

Our company is a professional manufacturer of roll profile high-frequency welded pipe equipment, four roller cold rolling mill, high-speed shear equipment, precision cold forming equipment, stainless steel welded pipe equipment and all kinds of complicated cross-section. It is one of the earliest domestic special factories that are engaged in making welded pipe equipment in China.



TECHNICAL PARAMETERS

Specification: Φ76×8.2
Pipe Diameter: Φ13~Φ76mm
Pipe Thickness: 3~8.2mm
Pipe Materials: Q195,Q215,Q235
Welding Speed: 10~30M/Min



API model mainly produces high level steel pipes, such as delivery pipe of petroleum and natural gas, oil well casing and so on. The requirements for material and quality are very strict. The mill is equipped with section equipment and technological equipment, such as IF annealing, air-cooled roll table, ultrasonic inspection, high pressure hydraulic pressure testing machine and so on.



National standard model mainly produces the steel pipe, such as water-gas pipe, structure pipe and so on.



Forming and sizing unit uses combination of FF forming and FFX forming to produce steel pipes through HF induction welding. Heating method uses HF induction or contact welding, i.e. steel pipe fed into the mill is formed into pipe profile by forming rolls. With skin effect and proximity effect of high frequency current, induced electricity is concentrated onto the bonding surface of the pipe profile fringe to heat it up quickly to welding temperature, and finishes pressure welding when pipe fringes squeezed together by squeezing roll. After normalizing, cooling, sizing and primary straightening, steel pipe of desired size is produced.



Specification

Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m2)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100







































Our services



1. What's the application of the HF straight seam welding steel tube forming machine ?
Re: the HF (ERW) welded pipe forming machine is used to produce building materials pipe, which is widely used for building material , drain and energy supply pipe.
building and decoration profiles , extruded profiles , building profiles ,cold bending profiles , etc.

2. How about the welded pipe size for diameter and wall thickness?
Re: the carbon steel pipe diameter can be customized from 25-606mm with wall thickness 0.5- 25mm for different kinds of application.

3. What’s the raw material (strip) width apply in welded pipe forming line?
Re:We can customized the machine as per your requirements, the suitable steel strip width can be from 100mm to 1000mm, and we can also designed as per your drawing.

4. How about the after-sales service, including installation, commissioning and training?
Re: We will supply all the operation manual and video clip going with machine, and we supply free training here in our plant. Also we can send technicians to your site for installation and training, but the relevant should be borne by your company.
