Galvanised Steel Cold Cut Pipe Saw No Burrs 70 M / Min Cutting Speed

Certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
Customer Reviews
Thanks for your pipe mill,very good quality and best after-slae service!

—— Mr.Gaber Ibrahim

Dear Amy, Nice day. We have received your mill machine,very good,thanks

—— Eng.Sandeep Sharma

Hi Ms.Amy, Greetings! Thanks for everything when visiting you,very nice factory and good quality machine. Hopefully we can be good patners in future.

—— Ddwin Jakobs

I'm Online Chat Now

Galvanised Steel Cold Cut Pipe Saw No Burrs 70 M / Min Cutting Speed

Galvanised Steel Cold Cut Pipe Saw No Burrs 70 M / Min Cutting Speed
Galvanised Steel Cold Cut Pipe Saw No Burrs 70 M / Min Cutting Speed Galvanised Steel Cold Cut Pipe Saw No Burrs 70 M / Min Cutting Speed

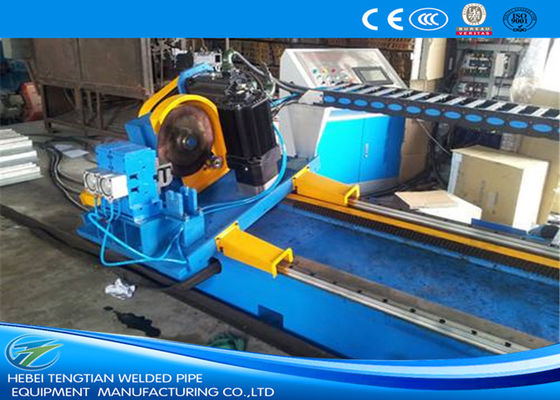

Large Image :  Galvanised Steel Cold Cut Pipe Saw No Burrs 70 M / Min Cutting Speed

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: CS114
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 90 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets/Year
Detailed Product Description
Material: HRC,CRC,Galvanised Steel Motor Type: Servo Motor
Cutting Speed: Max.70m/min Warranty: 1 Year
Tube Size: 38-114mm Thickness: 1.0-5.0mm
Cutting Accuracy: ≤±2 Mm After-sales Service Provided: Engineers Available To Service Machinery Overseas
Saw Blade: HSS / TCT Saw Blade
High Light:

cold cut saw

,

cold cutting machine



CS114 High Precision High speed Cold Cut Pipe Saw by Servo motor HSS saw blade cutting



Specifications:

High precision,smooth running
Low noise,good cutoff surface,no burrs
without harm to people when saw blade crushed on cutting



Equipment description

High Precision without burr Cold Cut Pipe Saw

is a Very important link in the high frequency welded pipe production line,The cold cut saw's biggest advantage is to ensure the slice of high smoothness,that greatly improved the quality of products, but also save the manpower and product consumption.



Specification & Technical Parameters CS50 CS76 CS114
Round Tube 15-50.8 mm 20-76.2 mm 38-114 mm
Square Tube 12-40mm 15-60mm 30-80mm
Rectangle Tube 15x10…50x30 mm 20x10…80x40 mm 20x40…100x60 mm
Thickness

0.8-3mm

0.8-4.0mm

1.0-5.0mm

Speed

100

m/min.

80

m/min.

70

m/min.

Precision ±2mm ±2mm ±2mm

Galvanised Steel Cold Cut Pipe Saw No Burrs 70 M / Min Cutting Speed 0
