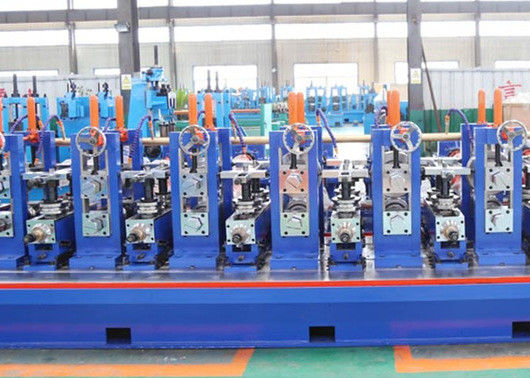

Stainless Steel Welded ERW Pipe Mill Square Shape Large 130 × 130mm Pipe Size

Stainless Steel Welded ERW Pipe Mill Square Shape Large 130 × 130mm Pipe Size
Stainless Steel Welded ERW Pipe Mill Square Shape Large 130 × 130mm Pipe Size Stainless Steel Welded ERW Pipe Mill Square Shape Large 130 × 130mm Pipe Size

Large Image :  Stainless Steel Welded ERW Pipe Mill Square Shape Large 130 × 130mm Pipe Size

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: HG165
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: packed in seaworthy material
Delivery Time: three month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 set per year
Detailed Product Description
Material: Carbon Steel,stainless Steel,low Alloy Steel Product Speed: Max 80m/min
Pipe Diameter: 60-165mm Pipe Thickness: 3.0-7.0mm
Type Of Welding: High Frequency Welding Product Name: Square Tube Mill
High Light:

stainless tube mills

,

slitting line machine

HG165 Adjustable Size High frequency Welded Pipe ERW Pipe Mill



The ERW pipe mill with high frequency solid welder,can product he round pipe,square pipe and

rectangular pipe in high speed,and also can product the L,T,Z shape pipe,reduce the cost of roller ensure the quality of the finish pipe.





Product Process:



material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→

HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table





The Basic Parameters:



stands of forming mill 8
stands of sizing mill 6
shaft material 40Cr
round pipe diameter 60-165mm
Round pipe thickness 3.0-7.0mm
square pipe size 50×50-130×130mm
square pipe thickness 3.0-6.0mm



we can design the machine accoeding to the customer detail require.



Machine features

1) roller shaft diameter is big, amount is big, and mateiral 42CrMo.

2) equiped double motors, efficiency is good.

3) tue making effiency is high.tube straightness is good.

4) reliability is high and failurate is low.

5) opeartion is convenient.

6) computer saw adopts shengyang brand, the quality is the best one in domestic.

7) high frequency welder adopts the best brand in china.



Cold sawing cutting

Digitally cold cutting machine is composed of mechnical parts, electronic parts and hydraulic parts. Three shafts are tracking shaft, cutting feeding shaft, saw blades rotating shaft, this three shafts are controlled by its special motion controller, servo motor driving operatiing, and the parameters are entered through LCD touch screen, also working condition can be visible checked from touch screen. The saw blades of cold saw using the high speed steel, and the cold saw can run synchronous while the pipe mill line producing; the CNC system of the cold saw can ensure the cutting speed and position accuracy, the cutting head(with saw blade) feeding and rotating speed can be adjusted by CNC program according to the technological requirements.
