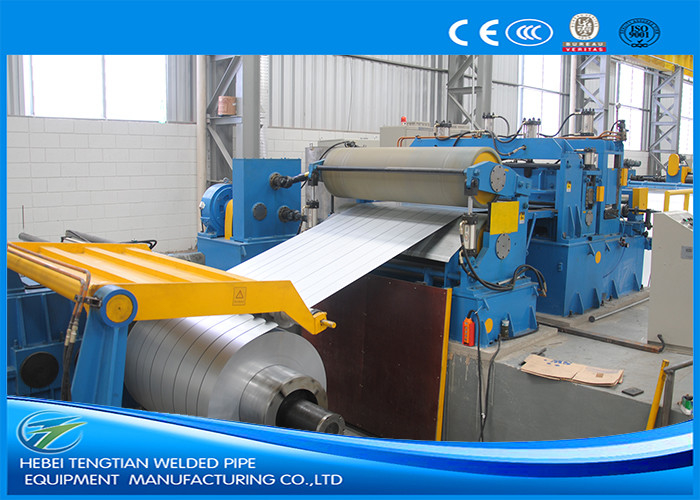

Full Automatic Steel Slitting Machine 0.5-3.0mm Thickness 120m/min

Name: Full Automatic Steel Slitting Machine 0.5-3.0mm Thickness 120m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: SJ1200*3
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	SJ1200*3

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

SJ1200*3

Material:

Full Automatic Carbon Steel Stainless Steel Slitting Line Machine

Product Speed:

Max 120m/min

Steel Thickness:

0.5-3.0mm

Special Require:

Can Design According To The Customer

Product Name:

Full Automatic Steel Slitting Line

Certification:

CE ISO

Highlight:

High Light

Highlight:

slitting line machine

strip slitting machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

150 set per year

Product Description

Full Automatic Steel Slitting Machine Line High Performance With 3.0mm Thickness

Product Specifications

Attribute	Value
Material	Full Automatic Carbon Steel Stainless Steel Slitting Line Machine
Product Speed	Max 120m/min
Steel Thickness	0.5-3.0mm
Special Requirements	Can design according to customer specifications
Product Name	Full Automatic Steel Slitting Line
Certification	CE ISO

Machine Overview

The Full Automatic Carbon Steel Stainless Steel Slitting Line Machine consists of uncoiler, feeder, slitter, and recoiler components. Its primary function is to slit wide coils into specified width strips along the length direction, which can then be used for milling, welding pipe, cold bend forming, or stamping as billet. Different material blades can be installed to process various metal coils.

Production Process

Loading coil car
Uncoiler
Straightener device
Pinch roll & leveler & hydraulic shearer
Loop pit
Side guide
Slitter
Transition platform & scrap winder
Loop pit
Tension station
Recoiler
Unloading coil car

Technical Parameters

Parameter	Specification
Material	Carbon steel, stainless steel, galvanized steel
Material Thickness	0.5-3.0mm
Material Width	800-1200mm
Coil ID	Ø508/610mm
Coil OD	<2000mm
Coil Weight	Max 20 Ton

Available Models

Model	Steel Thickness	Steel Width	Steel Coil Weight
3*1600mm	0.5-3.0mm	900-1600mm	30 Ton
4*1600mm	0.5-4.0mm	900-1600mm	30 Ton
6*1600mm	1-6mm	900-1600mm	30 Ton
8*2000mm	2-8mm	900-2000mm	35 Ton
10*2200mm	3-10mm	900-2200mm	35 Ton
12*2200mm	3-12mm	900-2200mm	35 Ton
16*2500mm	4-16mm	900-2500mm	35 Ton
20*2500mm	6-20mm	900-2500mm	35 Ton

Note: These models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to specific customer requirements.
