Custom Pipe Wrapping Machine , Carbon Steel Tube Orbital Wrapping Machine

Certification
Good quality Precision Tube Mill for sales
Good quality Precision Tube Mill for sales
Customer Reviews
Thanks for your pipe mill,very good quality and best after-slae service!

—— Mr.Gaber Ibrahim

Dear Amy, Nice day. We have received your mill machine,very good,thanks

—— Eng.Sandeep Sharma

Hi Ms.Amy, Greetings! Thanks for everything when visiting you,very nice factory and good quality machine. Hopefully we can be good patners in future.

—— Ddwin Jakobs

I'm Online Chat Now

Custom Pipe Wrapping Machine , Carbon Steel Tube Orbital Wrapping Machine

China Custom Pipe Wrapping Machine , Carbon Steel Tube Orbital Wrapping Machine supplier
Custom Pipe Wrapping Machine , Carbon Steel Tube Orbital Wrapping Machine supplier Custom Pipe Wrapping Machine , Carbon Steel Tube Orbital Wrapping Machine supplier

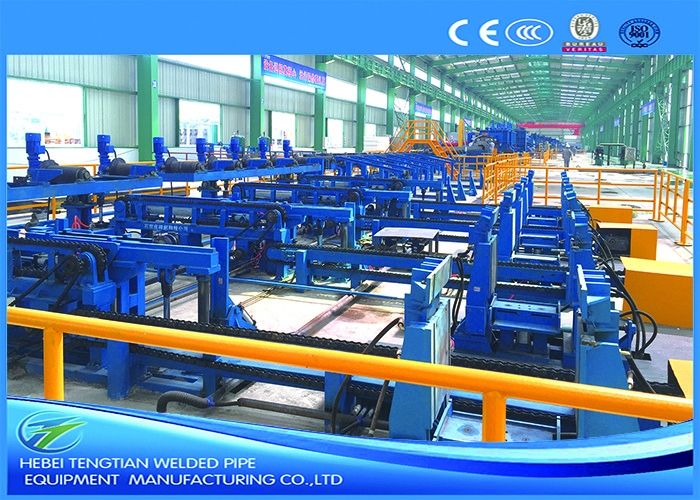

Large Image :  Custom Pipe Wrapping Machine , Carbon Steel Tube Orbital Wrapping Machine

Product Details:

Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: HT32-165

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: packed in seaworthy material
Delivery Time: two month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 set per year
Contact Now
Detailed Product Description
Material: Carbon Steel Pipe,stainless Steel Pipe Product Speed: Max 90m/min
Pipe Diameter: Up To The Tube Mill Size Pipe Thickness: Up To The Tube Mill Size
Type Of Welding: High Frequency Welding Special Require: Can Design According To The Customer

 Adjustable Size Automatic Packing Machine Carbon Steel Tube Mill Auxiliary Equipment



The packing machine with different speciafication,length of the steel pipe,through taking,counting,feeding device,automatic pallet into square or hexagonal,then through the automatic strappiing machine tied to shape,the equipment running smoothly,without artifical  unattended.





The Tube Mill Product Process:



material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→

HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table







ERW Tube Mill Other Model



Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20



This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
