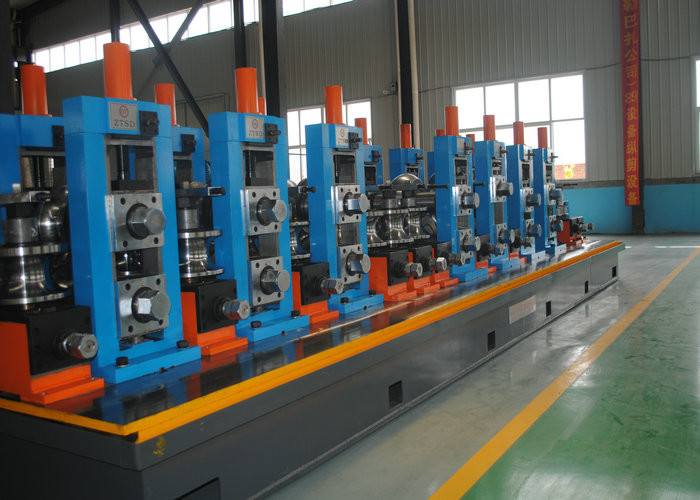

Straight Seam Mild Steel Small Pipe Making Machine ERW High Frequency

Straight Seam Mild Steel Small Pipe Making Machine ERW High Frequency
Straight Seam Mild Steel Small Pipe Making Machine ERW High Frequency Straight Seam Mild Steel Small Pipe Making Machine ERW High Frequency Straight Seam Mild Steel Small Pipe Making Machine ERW High Frequency

Large Image :  Straight Seam Mild Steel Small Pipe Making Machine ERW High Frequency

Product Details:

Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: HG50

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 2.5 months
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets/Year
Detailed Product Description
Adjustment Ty: By Turbine Worm Worm Gearing: Max.80m/min
Cutting Saw: Friction Saw Cutting Pipe Diameter: 21 - 63mm
Max.Thickness For Square Pipe: 0.8-3.0mm
High Light:

erw tube mill

,

slitting line machine

ERW High Frequency Straight Seam Mild Steel Small Pipe Making Machine



ERW Pipe Mill/Round Pipes Carbon Steel Pipe Making Machine/Tube Mill,Tube Making machine



We Reliantt offers almost 30 standard models, covering range from 3/8’’(8mm) up to 10’’(273mm) diameter (corresponding square & rectangular tubes) and wall thickness from 0.3mm up to 12.7mm, also accept customized machines.



Suitable material: Carbon Steel Coil , Galvanized Steel Coil



ERW Pipe Mill/Round Pipes Carbon Steel Pipe Making Machine/Tube Mill,Tube Making machine Application



1. Water pipe

2. Heating pipe

3. Low-pressure process pipeline

4. Low pressure fire fighting pipeline

5. Sewage Pipes

6. Steel Scaffolding Pipe

7. Wire and cable protection pipe

8. Structural support Steel Pipe

9. Industrial Steel Pipes

10. Decoration Pipe

11. Oil & Gas Pipes



ERW Pipe Mill/Round Pipes Carbon Steel Pipe Making Machine/Tube Mill,Tube Making machine Flow

…………………………………………………………………………………………………………………………………………………………………………………

Slit Coil ---- Un-Coiler ---- Shearing And Butter Welder ---- Storage/ Accumulator ---- Forming ---- Welding ---- Cooling ---- Sizing ---- Cutting Saw ---- Run Out Table ---- Finishing ---- Pipe Collecting and Packaging





ERW Tube Mill Other Model



Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20

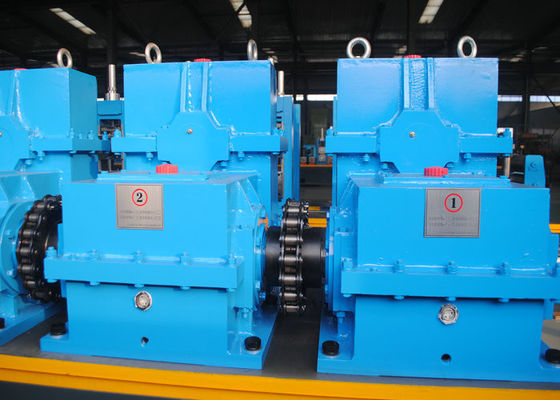

Straight Seam Mild Steel Small Pipe Making Machine ERW High Frequency 0Straight Seam Mild Steel Small Pipe Making Machine ERW High Frequency 1

Basic componets & Work flow:
Uncoiler→Shearing and butt-welder→Vertical-type accumulator→Forming,welding,sizing machine→

Computer cutting saw→Run-out table





Scope of Supply:



1) Machine installation & test running for Buyer.



2) Sufficiently train operation method to Buyer's operators.



3) Reference document (in English): foundation drawing (including the arrangement of water, electricity and air etc.), circuit diagram and operation instruction, etc



4) Additional Rollers for welded pipe will be ordered and designed according to type and specification provided by Buyer.



Material: Cr12





Sale conditions



1) Packing: Sea worthy packing, the mechanical parts are in nude pack, and the electrical arts and the spare parts are simply packed.



2) Quality Assurance: the Seller manufactures the equipment according to the relevant standards strictly and tests the equipment according to the technical documents.



3) Installation: three engineers will be dispatched to Buyer factory for installation and test running. The buyer should charge of return ticket, food and accommodation abroad and pay USD60/person/day for salary.



4) Warranty: we guarantee one year’s warranty after test running. (The matters caused by Buyer’s fault and the lack of Buyer’s maintenance shall not be covered). And we offer lifelong technical service and fast-response technical support to Buyer.





Scope of work excluded (Buyer scope)



1) Foundation construction and electric appliance work, civil engineering and necessary materials.



2) Machine to machine wire, mechanical pipe, water pipe;



3) Lubricating oil, cycle oil, gear box oil, cooling circulating water



4) D .Safety appliance, out of standard security items



5) Test run material, magnetic rod, bearing etc. low value consumables.



6) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector. Air compressor (1.5 cubic meters/minutes)


Packaging & Delivery

Packaging Details

This kind of machine should adopt nude packaging and sea shipping by container.

Delivery Time

Shipped in 45 days after payment



High frequency tube Straight Seam Welding Pipe Mill, Pipe making machine



1. Description

This equipment is specially used for producingΦ20-Φ80mm, δ0.5-2.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.



2. Applicable material:

1 Raw material: Low-carbon steel,

2 Thickness of steel strip: 1.0-3.5mm
3 The width of steel strip: 60-240mm
4 I.D. of steel coil: Φ450-Φ550mm
5 O.D. of steel coil: Φ800-Φ1200mm
6 Maximum weight coil: 2500kgs



3. Dimension range of processing steel tube:

1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)

3 Length: 4-8m
4 Milling speed: 60-70m/min
5 High-frequency equipment power: 250 KW (Solid state)
6 Voltage:380V/440V,50HZ


4. Milling speed: 20-100M/min(choose different speed as per different pipe diameter and thickness)



5. Product (steel tube) process flow:

Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube



Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
