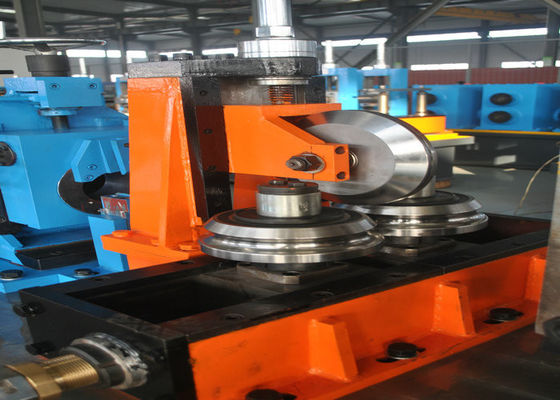

High speed ms pipe making machinery fully automation high precision ERW tube mill

High speed ms pipe making machinery fully automation high precision ERW tube mill
High speed ms pipe making machinery fully automation high precision ERW tube mill High speed ms pipe making machinery fully automation high precision ERW tube mill High speed ms pipe making machinery fully automation high precision ERW tube mill High speed ms pipe making machinery fully automation high precision ERW tube mill

Large Image :  High speed ms pipe making machinery fully automation high precision ERW tube mill

Product Details:
Place of Origin: CHINA
Brand Name: TENGYIAN
Certification: ISO90001.BV,CE
Model Number: HG76
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 60 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 Sets/Year
Detailed Product Description
Pipe Material: Carbon Steel,Stainless Steel Condition: New
Voltage: 380V/220V Weight: About 10 Tons
Pipe Shape: Round,square,etc. Pipe Diameter: 25-76mm
Thickness: 1-4mm Color: Blue,blue Green Or As Your Requirement
High Light:

erw tube mill

,

slitting line machine

High speed ms pipe making machinery fully automation high precision ERW tube mill



1: Which kind of pipe can be produced by our Pipe mill ?

1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
2. Heating Pipe 8. Structural Support Steel Pipe
3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
5. Sewage Pipes 11. Water Pipe
6. Steel Scaffolding Pipe 12. Building pipe





2. Flow chart of our tube mill

Standard flow chart of ISO/CE MS Iron Pipe Making Machine Production Line 8-219 mm ERW Pipe Mill:

Step 1: Uncoiler

Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum, brake.

There are 3 types: pneumatic, hydraulic and manual.

Step 2: Shearing butt welding

2 Types: Automatic & Manual

Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue production.

Step 3: Strip Accumulator

Function: storage strip to keep continue production.
2 Types: Horizontal / Vertical
Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.

Step 4: Forming Section.

Function: forming the tube from strip

Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box
>Siemens Beide motor



Step 5: High Frequency Welding

Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder

Our advantage: We choose the China best welder: Sanyi brand.

Step 6: Sizing Section

Function: sizing the tube to precise size

Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor
>High precision, low error of the pipe size

Step 7: Flying saw / Cold Saw

Function: cutting the tube mill line tube to right length.

Fly saw: easy to operation, low investment.
Cold saw: no noise, no burr cutting precision and cross section.
