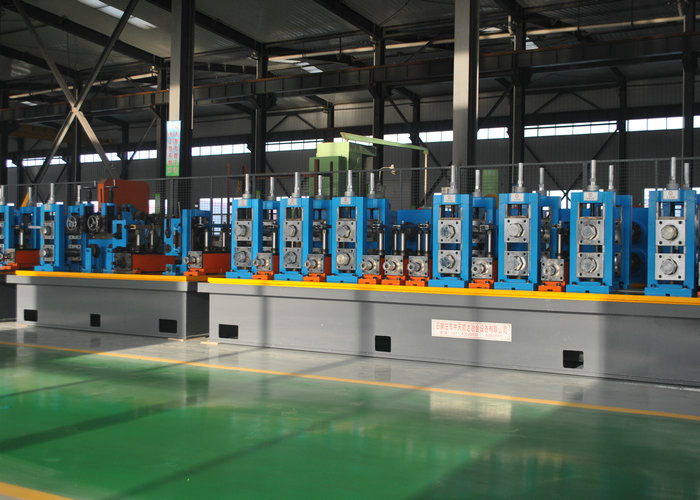

High Speed ERW Pipe Mill Max 50m/Min Speed Fully Automation BV Standard

Certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
Customer Reviews
Thanks for your pipe mill,very good quality and best after-slae service!

—— Mr.Gaber Ibrahim

Dear Amy, Nice day. We have received your mill machine,very good,thanks

—— Eng.Sandeep Sharma

Hi Ms.Amy, Greetings! Thanks for everything when visiting you,very nice factory and good quality machine. Hopefully we can be good patners in future.

—— Ddwin Jakobs

I'm Online Chat Now

High Speed ERW Pipe Mill Max 50m/Min Speed Fully Automation BV Standard

High Speed ERW Pipe Mill Max 50m/Min Speed Fully Automation BV Standard
High Speed ERW Pipe Mill Max 50m/Min Speed Fully Automation BV Standard High Speed ERW Pipe Mill Max 50m/Min Speed Fully Automation BV Standard

Large Image :  High Speed ERW Pipe Mill Max 50m/Min Speed Fully Automation BV Standard

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG76
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: three months
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 50 set per year
Detailed Product Description
Pipe Diameter: 25-76mm Product Speed: Max 50m/min
Material: Carbon Steel,stainless Steel,low Alloy Steel Cutting Saw: Friction Saw Cutting
Worm Gearing: Max.80m/min Pipe Thickness: 4.0-10.0mm
High Light:

erw tube mill

,

slitting line machine

1.1 General information



This equipment is specially used for producingΦ19-Φ76mm,δ0.7-3.0 mm high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe. The composition of equipment is from decoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.



1.2 Applicable material



(1) Hot, cold-rolled steel strip and galvanized (As per GB700-88 or GB1591-88)

(2) Material: Low-carbon steel, low alloy steelδs≤345Mpa,δb≤610Mpa





  1.3 ERW Tube Mill Other Model



Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20




     1.4 General process

Raw material (steel coil) → decoiling→ shearing and welding→ accumulator → non-power leveling →forming milling →high frequency welding →de-burr frame→ cooling unit→ sizing unit →rough straightening → fixed length cutting →run out table



1.5 Suggested necessary accessories prepared the Buyer (for reference only)



(1) Mechanical equipment site: 45m X4.5m (length X width)

(2) Electrical equipment site: 5m X 4m (length X width)

(3) Machine unit foundation base (See supplier’s base drawing)

(4) Two sets of 5-ton overhead crane or 10 tons overhead crane.

(5) Power supply:

(6) Blades for tracking saw, specification as per instruction book .The quantity is decided by the customer.

(7) Magnetic bar for welding pipe, purchase as per pipe making size.

(8) One sets of Φ3”, 6m high-pressure pumps for pipe welding machine bed.

(9) 1 set of cooling water pool for pipe-welding machine bed, volume 25m3with water pipe, water pressure meter and valve. (Quantity and sizes shall be decided on site, then purchase outside)

(10) Machine unit electric circuit. Before assembling, circuit must reach the electric cabinet of high-frequency room. Electric connection for high-frequency room to overall control table and button station. (Quantity and sizes shall be decided on site, then purchase outside)

(11) One high-frequency room for machine unit. Adopting ground or attic according to customer’s layout.

(12) Air compressor: one set (market purchase)

(13) Lifting equipment and tooling for installing machine,(crane, steel wire rope, etc) maximum weight of one part is 8tons.





Our Services

Quality Assurance

we Shall be responsilbe for quality problem resulted from design and manufacture with one year after successfull installation and debugging and all the expenses for replacing parts and components( exclude human factors and vulerable components ) shall be born by us !

Debugging

1) Factory will send 1-2technical engineers for installation and testing operation

2) The site, the equipment foundation, cool constructions etc. responsible by buyer according to equipment material which provides by supplier, the equipment for installation (lift equipment, tool etc.), the installation accessory material (wire, drive pipe, water pipe and so on), the labor force arranged by the buyer.

3) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector

4) Buyer Preparation Notes

(a)Machinery device takes the location (length* width)

(b)Power supply: Main power to equipment control bench, unit position

(c) Air feed: Air compressor (1.5 cubic meters/minutes

(d) Water supply: Water source to machine station



Contact Details
Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.

Contact Person: Mr. Yan

Fax: 86-0311-8302-5332

Send your inquiry directly to us (0 / 3000)
