Welded Pipe Mill
>

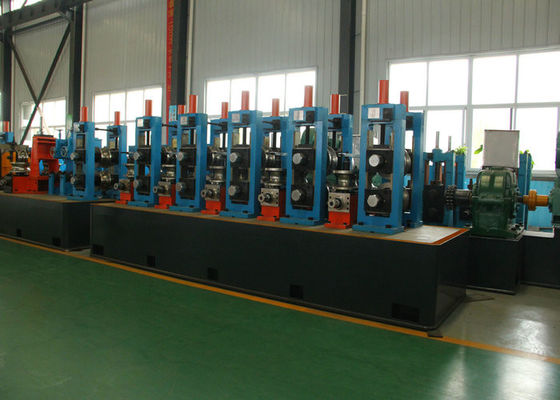

HG76 Automatic ERW Round Tube Making Machine Carbon Steel Tube Mill

HG76 Automatic ERW Round Tube Making Machine Carbon Steel Tube Mill

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG76
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG76
Product Name:
HG76 Automatic ERW Round Tube Making Machine Carbon Steel Tube Mill
Model:
HG76
Diameter Range:
12-76mm
Thickness:
1-3mm
Molding Speed:
30-100m/min
Material:
Carbon Steel,Stainless Steel
Motor Power:
320kw
Keywords:
ERW Round Tube Making Machine
Highlight:

High Light

Highlight:

erw tube mill

,

stainless tube mills

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
2.5 months
Payment Terms:
L/C, T/T, Western Union, D/P
Supply Ability:
100 Sets/Year
Product Description

HG76 Automatic ERW round Pipe Mill & Tube Making Machine



I. Brief introduction:
76mm welded pipe production line is designed to produce welded pipes of12mm-76mm in OD and 1mm-3mm in wall thickness, as well as corresponding square and rectangle tube.

II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 12mm-76mm Thickness: 1mm-3mm
Square tube: 25mm×25mm 70mm×70mm, Thickness: 1mm-3.0mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
3. Tube mill
Production Speed : 30-100m/min
Direction : left to right or right to left from operator`s side decided by customers.

III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing

IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers


Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
