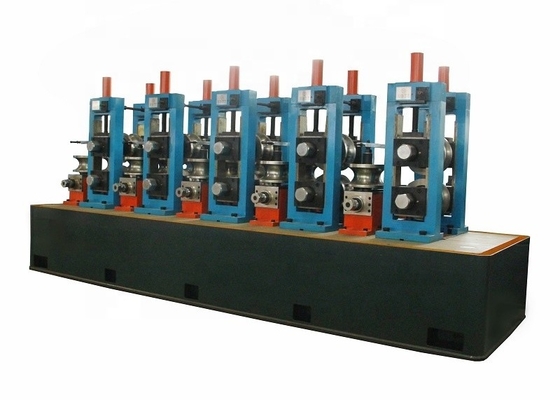

Dia 114-219mm Carbon Steel 50m/Min Tube Mill Machine

Dia 114-219mm Carbon Steel 50m/Min Tube Mill Machine
Dia 114-219mm Carbon Steel 50m/Min Tube Mill Machine Dia 114-219mm Carbon Steel 50m/Min Tube Mill Machine

Large Image :  Dia 114-219mm Carbon Steel 50m/Min Tube Mill Machine

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG219
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 3.5 months
Payment Terms: L/C, T/T, Western Union
Supply Ability: 70 set per year
Detailed Product Description
Material: Carbon Steel,stainless Steel,low Alloy Steel Pipe Diameter: 114-219mm
Product Speed: Max 50m/min Max.Thickness For Square Pipe: 4-8mm
Certification: CE ISO Worm Gearing: Max.40m/min
High Light:

50m/Min Tube Mill Machine

,

114mm Tube Mill Machine

,

219mm Tube Mill Machine



Dia 114-219mm Carbon Steel 50m/Min Tube Mill Machine

Product Description

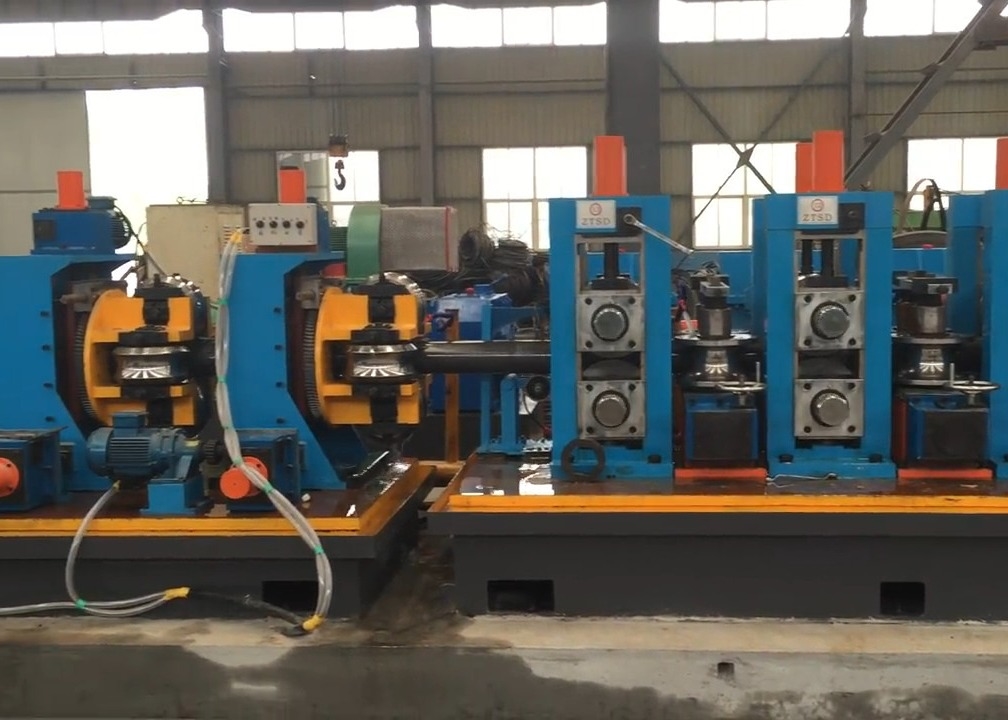

High frequency straight seam welded pipe production line is the specifications of the steel belt feeding unit, through the roll bring curled up into a tube billet steel, and then use the high frequency of proximity effect and skin effect make the strip edge instantaneous heating to welding temperature, and under the action of squeezing roller complete welding, then through water cooling, sizing and straightening as required specifications of the steel pipe. The product line in each units on the basis of digesting and absorbing domestic and foreign similar equipment, combined with China's national conditions, innovative design, convenient operation and maintenance, simple. The machine has high machining quality and assembly precision, and can produce electric welded steel pipe with high precision by adopting reasonable roll pass.





The model and basic parameters

Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m2)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100



































Production Process


Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse
