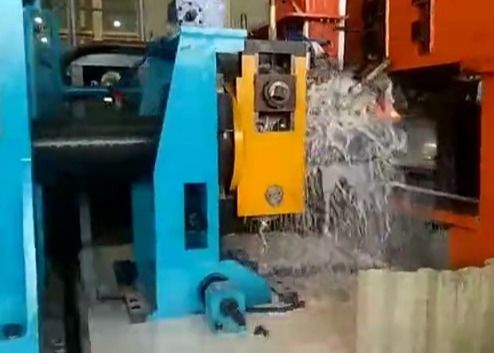

Carbon 30m/Min 5mm BV Pipe Rolling Mill

Carbon 30m/Min 5mm BV Pipe Rolling Mill
Carbon 30m/Min 5mm BV Pipe Rolling Mill Carbon 30m/Min 5mm BV Pipe Rolling Mill

Large Image :  Carbon 30m/Min 5mm BV Pipe Rolling Mill

Product Details:
Place of Origin: Hebei,China
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG140
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 120 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40 Sets/Year
Detailed Product Description
Mill Speed: 30-60m/min Warranty: 1 Year
Voltage: 380V/220V Outer Diameter: 89 - 140 Mm
Thickness: 1 - 5mm After-sales Service Provided: Engineers Available To Service Machinery Overseas
Pipe Shape: Rectangle,round,square Material: Low Alloy Constructional Steel
High Light:

30m/min pipe rolling mill

,

5mm pipe rolling mill

,

bv pipe rolling mill

Product Application

High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 60~140mm in diameter and 1.5~5.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.This production line's each unit equipment, full use of the domestic and foreign similar equipment, innovative design, advanced technology, convenient operation and maintenance, and reached the international leading level.

Straight Seam Welded Pipe Mill

Adapt materials
Steel strip
cold rolled steel strip
Hot rolled
Material
low alloy constructional steel
Low carbon steel
features
δs≤345Mpa
δb≤610Mpa

Processing steel pipe size range
Processing range
Round pipe Φ89-Φ140mm
Square&Rectangular pipe 50x50-110x110

Thickness
Round pipe
1.5-5.0mm
Square&Rectangular pipe
1.5-4.5mm



Installed capacity
800KVA
Water consumption
50m3/h
Solid-state high-frequency Welder
300KW or 400KW
Workshop Request
length, width and height 50m X 12m X 6m
Forming speed
40-60m/min





Carbon 30m/Min 5mm BV Pipe Rolling Mill 0
Carbon 30m/Min 5mm BV Pipe Rolling Mill 1
Carbon 30m/Min 5mm BV Pipe Rolling Mill 2
Carbon 30m/Min 5mm BV Pipe Rolling Mill 3
Detailed Images
Carbon 30m/Min 5mm BV Pipe Rolling Mill 4
Decoiler

Type: double mandrel type

Original: China

Matching: coil loading car and end straightener



Decoiler mainly used to hold steel strip to make coils unfold,supplying raw material for the production line.

Horizontal accumulator



Type: horizontal, cage spiral loop
Original:China


It stores certain amount of strip and lesves time for the shear welded to shear and seld the ends to the strips.

Carbon 30m/Min 5mm BV Pipe Rolling Mill 5
Carbon 30m/Min 5mm BV Pipe Rolling Mill 6

ERW (Main equipment)

Type:normal,high precision, automatic
Brand: TT
Original: China

The machine adopts advanced F.F or F.F.X forming system and Germany COPRA rollers designing software to guide and test its performance.

Main Features

Type: cold cutting saw, flying saw
Brand: TT
Original: China
It's used to precisely cut the pipe to length automatically under the condition that the pipe continuously delivery form the mill at high speed.

Carbon 30m/Min 5mm BV Pipe Rolling Mill 7
Product process
Carbon 30m/Min 5mm BV Pipe Rolling Mill 8
