Carbon Steel 120m/Min 3mm Welded Pipe Making Machine

Carbon Steel 120m/Min 3mm Welded Pipe Making Machine
Carbon Steel 120m/Min 3mm Welded Pipe Making Machine Carbon Steel 120m/Min 3mm Welded Pipe Making Machine

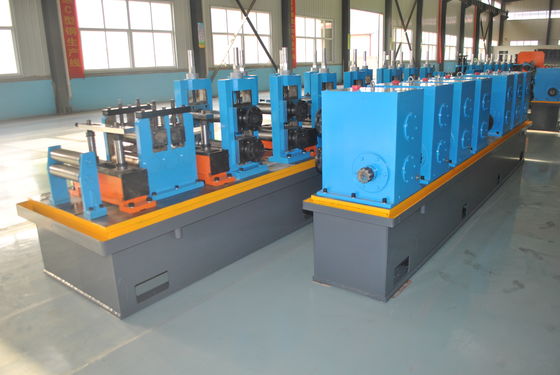

Large Image :  Carbon Steel 120m/Min 3mm Welded Pipe Making Machine

Product Details:
Place of Origin: China
Brand Name: Tengtian
Certification: CE / ISO
Model Number: HG32
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable according to different sizes of machine
Packaging Details: Special export packing, and fixed in container
Delivery Time: 2 Months - 4 Months
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Year
Detailed Product Description
Forming Method: Cold Roll Forming By Rollers Welding Type: High Frequency Welding
Cutting Saw: Cold Saw & Friction Saw Cutting Feature: High Precision; More Stable; High Speed;
Customized: Machine Designing As Per Customer Requirement Welding Speed: 30-120m/min
Raw Material: HRC, CRC, Galvanised Steel Name: Welded Pipe Making Machine
High Light:

120m/min welded pipe making machine

,

120m/min steel pipe making machine

,

3mm welded pipe making machine

Product description

  1. Material Specifications:
  2. (1)Conforming to the YB189-64 standard
  3. (2)Material : Low carbon steel and low alloy constructional steel
  4. (3)Mechanical properties: σb≤520Mpa,σs≤365MPa
  5. (4)Strip Width:40-100mm
  6. (5)Strip Thickness:0.8-2.0mm
  7. (6)Inner Diameter of Coils:φ480~φ520mm
  8. Outer Diameter of Coils:φ1000~φ1800mm
  9. Coil Weight:≤2T
  10. Welded Pipe Specification:
  11. Square pipe :10x10-25x25mm 0.8-2.0mm
  12. (2)Fixed Cutting length:4-9m
  13. (3)Pipe-cutting Precision:0-3mm
  14. Forming Speed:20-100m/min



Carbon Steel 120m/Min 3mm Welded Pipe Making Machine 0Carbon Steel 120m/Min 3mm Welded Pipe Making Machine 1Carbon Steel 120m/Min 3mm Welded Pipe Making Machine 2



Carbon Steel 120m/Min 3mm Welded Pipe Making Machine 3



ERW Tube Mill Other Model



Model Diameter Range Pipe Thickness Molding speed(m/min) Motor Power(KW) Mechanical area
(m³)
HG20 8-20MM 0.3-1MM 30-120 55 7×50
HG32 12-32MM 0.3-2.0MM 30-120 75 7×50
HG50 16-50MM 0.8-2.5MM 30-110 110 7×60
HG60 20-60MM 0.8-3MM 30-100 132 7×65
HG76 12-76MM 1-3MM 30-100 320 8×80
HG89 32-89MM 1-4MM 30-80 350 8×80
HG114 45-114MM 1.5-5.0MM 30-60 400 10×100
HG165 60-165MM 3-7MM 30-50 600 10×110
HG219 114-219MM 4-8MM 20-40 800 12×150
HG273 114-273MM 4-10MM 15-30 1000 18×160
HG325 165-325MM 4-12MM 10-30 1200 18×180
HG426 165-426MM 4-16MM 8-25 1400 18×180
HG508 219-508MM 4-20MM 8-20 2000 21×180


Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
