| Raw Material: | A, B, X42, X46, X52, X56, X60, X65, X70, N80; J55, K55 | Standard: | API 5L API 5CT GB/T 3091 JIS G3452 JIS G3444 JIS G3445 ASTM A513 EN 10219 |
|---|---|---|---|
| Welding Type: | High Ferquency Welding | Forming Technology: | F.F Forming |
| Product Name: | Pipe Making Machine , Pipe Tube Mill | Model: | 16'' API Pipe Making Machine |
| High Light: | erw pipe mill line,steel pipe mill |
||

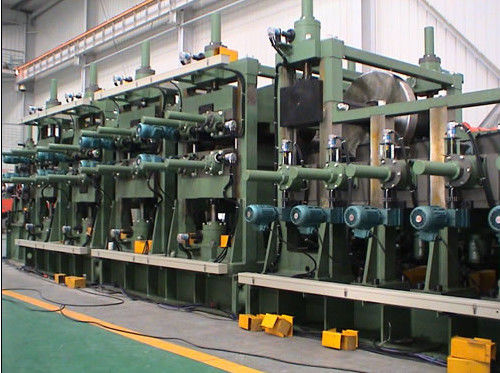

16'' API Pipe Making Machine
16'' Parameters:
Technical standards: API 5L API 5CT GB/T 3091 JIS G3452 JIS G3444 JIS G3445 ASTM A513 EN 10219
Steel grade: Line pipe: A, B, X42, X46, X52, X56, X60, X65, X70
Structural pipe: Q215, Q235, Q345, 20#
Petroleum casing pipe: H40, J55, K55, N80
Advantage of the line:
Easy adjustment, good weld seam quality.
Rigid machine structure.
Easy operation and maintenance.
The forming stand arrangement of this line uses double radius pass design.
Raw material
OD: Ø1350mm~Ø2000mm
ID: Ø610~Ø 762mm
Coil weight: Max. 30t
Strip width: 530mm~1300mm
Strip thickness: 4.0mm~12.7mm
Steel grade: Max. X70, J55, K55, N80, carbon structural steel, etc. (400N/mm2).
Finished product specifications
Pipe OD:Ø 168.3mm~Ø 406.4mm
Cut-to-length: 6~12m
Welding speed: 12~30m/min
If solid state high frequency welder of 800kW is used, welding speed is estimated as follows:
