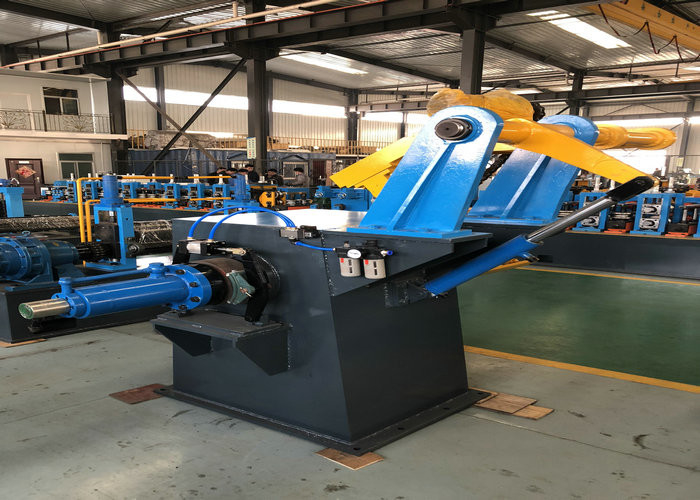

0.5-4.0mm Steel Slitting Machine for Carbon Stainless Steel

The steel coil slitting machine is designed to uncoil and level coil plates, slit steel plates using rotary shearing units, then recoil and package the processed material.

• Coil material: Cold/hot rolled steel
• Coil thickness: 0.6-3.0mm
• Coil width: 500-1212mm
• Coil ID: Φ508-Φ760mm
• Coil OD: Φ1000-Φ1600mm
• Maximum coil weight: 18MT

Loading coil → Uncoiler → Straightening head & pinching & leveling machine → Hydraulic shearing machine → Vertical roll → Rotary slitting machine → Scrap winder → Accumulator → Tension device → Recoiling machine → Discharging car

Motors of the line without optional machines: 260KW

• Estimated area needed: 21M×9.5M (L×W)
• Line foundation drawing provided by manufacturer
• 20 tons capacity lifters (1 unit required)

The slitting line machine consists of uncoiler, feeder, slitter and recoiler. Its primary function is to slit wide coils into specified width strips along the length direction for various industrial applications including milling, pipe welding, cold bend forming, and stamping.

Loading coil car → Uncoiler → Straightener device → Pinch roll & leveler & hydraulic shearer → Loop pit → Side guide → Slitter → Transition platform & scrap winder → Loop pit → Tension station → Recoiler → Unloading coil car

Note: These models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to specific customer requirements.

1. On-site engineer support for installation and operator training
2. One year quality guarantee with lifetime repair support
3. Comprehensive pre-sales and after-sales services including workshop design and production output planning
4. Option for extended engineer support (several months to 1 year) to optimize output and reduce costs
5. Complete project design services for stainless steel/carbon steel pipe production
6. Full responsibility for loading and shipping arrangements
