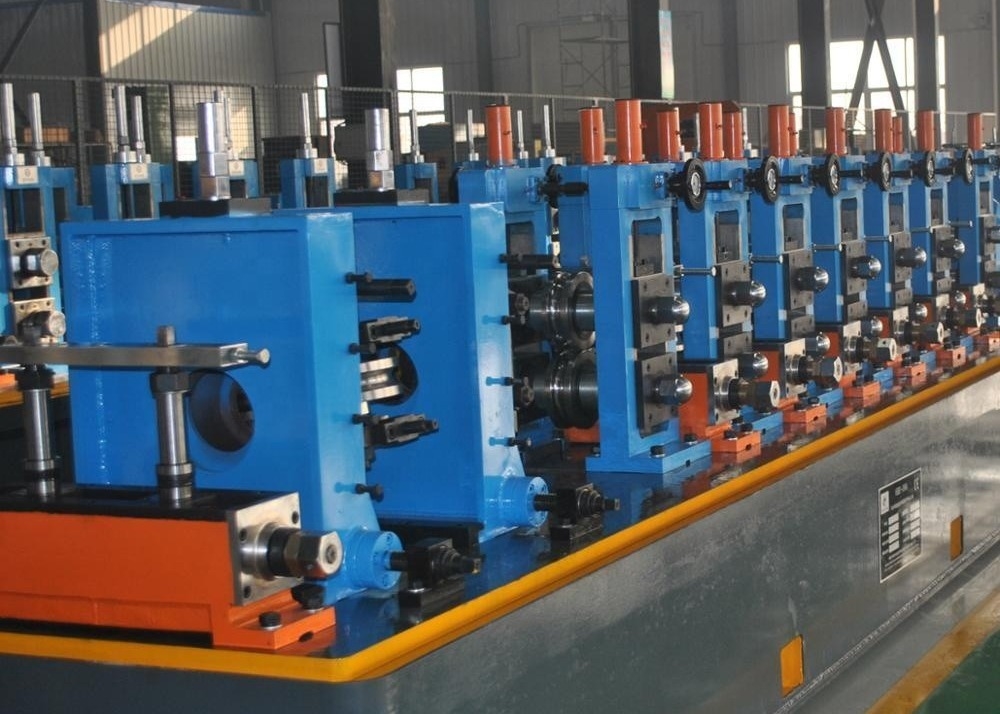

Fully Automatic HFW Steel Pipe Production Line 30-100m/min

Name: Fully Automatic HFW Steel Pipe Production Line 30-100m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	HG76

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

HG76

Forming Method:

Cold Roll Forming By Rollers

Welding Type:

High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Feature:

High Precision; More Stable; High Speed;

Customized:

Machine Designing As Per Customer Requirement

Welding Speed:

30-100m/min

Raw Material:

HRC, CRC, Galvanised Steel

Material:

Carbon Steel

Applicable Industries:

Manufacturing Plant, Machinery Repair Shops

Power:

350KW

Pipe Wall Thickness:

0.7-4mm

Highlight:

High Light

Highlight:

30mm/min steel pipe production line

hfw steel pipe production line

0.7mm Steel Pipe Production Line

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

2 Months - 4 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

0.7mm Fully Automatic HFW 30mm/Min Steel Pipe Production Line

Key Features

High Precision
More Stable Operation
High Speed Production
Custom Machine Design Available

Technical Specifications

Attribute	Value
Forming Method	Cold Roll Forming by Rollers
Welding Type	High Frequency Welding
Cutting Saw	Cold Saw & Friction Saw Cutting
Welding Speed	30-100m/min
Raw Material	HRC, CRC, Galvanised Steel
Material	Carbon Steel
Applicable Industries	Manufacturing Plant, Machinery Repair Shops
Power	350KW
Pipe Wall Thickness	0.7-4mm

Product Description

The HG76 High-Frequency Welded Pipe Production Line is designed for manufacturing welded pipes with diameters of 12-76mm and wall thicknesses of 1-3.0mm, including square, rectangular, and deformed pipes of corresponding sizes. This production line incorporates innovative design and advanced technology for convenient operation and maintenance, achieving international leading standards.

Technical Details

Adaptable Materials: Hot rolled or cold rolled steel strip (Low carbon steel and low alloy constructional steel, δs≤345Mpa, δb≤610Mpa)
Processing Range: Round pipe Φ12-Φ76mm; Square & Rectangular pipe 20x20--80x80
Wall Thickness: Round pipe 1-3mm; Square & Rectangular pipe 1-2.5mm
Installed Capacity: 800KVA
Water Consumption: 50m³/h
Solid-state High-frequency Welder: 300KW or 400KW
Workshop Requirements: 50m (L) × 12m (W) × 6m (H)
Forming Speed: 30-100m/min
