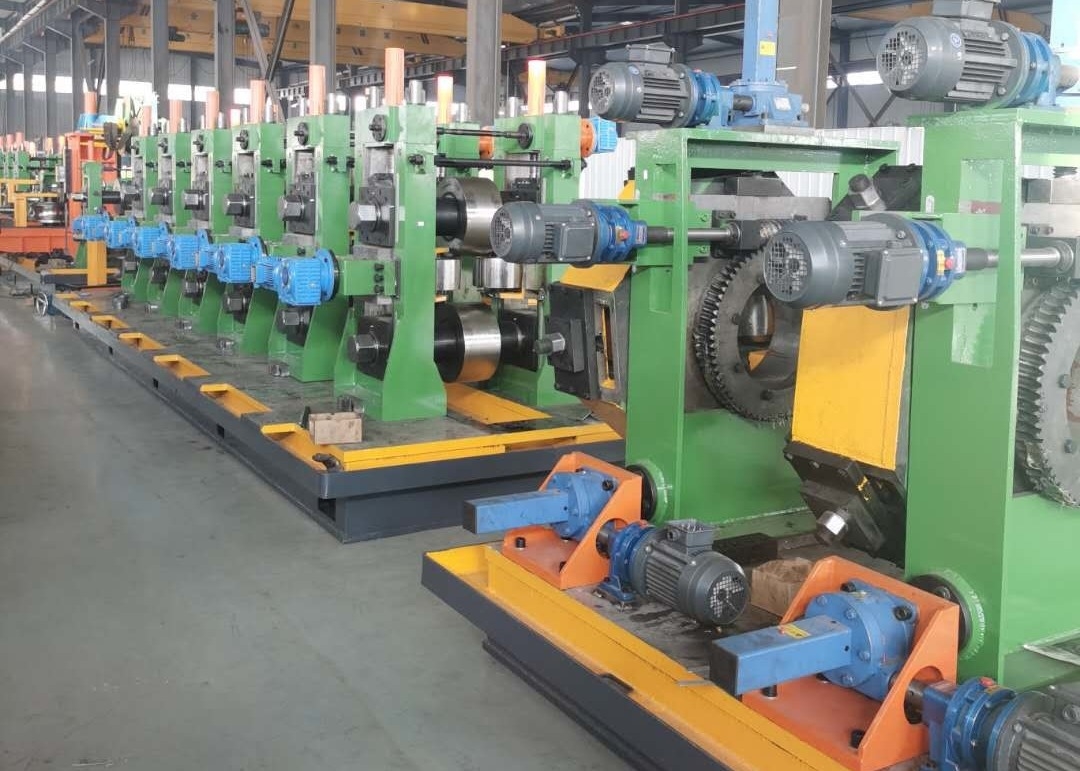

114mm High Frequency Welded Pipe Mill for Steel Tubes 45-114mm Diameter

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	114

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

114

Product Name:

High Frequency Welded Pipe Mill 114Mm Quick Change Roller High Frequency Welded Pipe Mill Straight Seam Steel

Equipment Specification:

High Frequency And Precision

Forming Method:

Roller Squeeze

Warranty:

One Year

Pipe Material:

Steel

Pipe Shape:

Round And Square

Thickness:

1 . 5 Mm - 5 . 0 Mm

Pipe Diameter:

45 - 114

Raw Material:

Steel

Key Words:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

114Mm high frequency tube mill

Quick Change high frequency tube mill

114Mm hf tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

300 work days

Payment Terms:

L/C,T/T,D/A,T/T

Supply Ability:

4 Sets/Year

Product Description

114mm Quick Change Roller High Frequency Tube Mill Straight Seam Steel

Product Specifications

Attribute	Value
Product Name	High Frequency Welded Pipe Mill 114mm Quick Change Roller
Equipment Specification	High Frequency and Precision
Forming Method	Roller Squeeze
Warranty	One Year
Pipe Material	Steel
Pipe Shape	Round and Square
Thickness	1.5mm - 5.0mm
Pipe Diameter	45mm - 114mm
Raw Material	Steel

Production Introduction and Process

This 114mm high frequency welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions.

Pipe Specifications:

Pipe Size: 76mm - 114mm
Pipe Thickness: 1.5mm - 4.0mm

Production Process:

Loading Car → Uncoil → Flattening
End Shear & Butt Welding → Accumulator → Forming
High-frequency Induction Welding → Removing External Burr
Cooling → Sizing → Cutting → Layout Table

Equipment Composition

No.	Component
1	Uncoiler
2	Straightener & Leveler
3	Automatic Shear and Welding
4	Feeder and Punching Machine
5	Automatic Forming and Sizing Part
6	Cutting Machine
7	Packing and Palletizing

Technical Specifications

Material Specifications:

Material	Low Carbon Steel, Galvanized and Carbon Steel Tube
Mechanical Properties	σb≤520Mpa, σs≤340MPa
Strip Width	230mm - 360mm
Strip Thickness	1.5mm - 4.0mm
I.D of Coils	520mm - 580mm
O.D of Coils	1000mm - 1600mm
Coil Weight	≤ 7T

Welded Pipe Specifications:

Pipe Diameter	Φ76mm - Φ114mm
Pipe Thickness	1.5mm - 4.0mm
Finish Pipe Length	4m - 6m
Cut Length Accuracy	±3mm
Forming Speed	40m/min - 50m/min

Power, Water & Air Supply:

Power Volume	Approx. 800KW
Power Source	415V/50Hz/3phases
Cooling Water Flow	30T/h - 40T/h
Pool Volume	60m³
Compressed Air Flow	5m³/min
Air Pressure	5kg/cm² - 7kg/cm²

Workshop Requirements: 100m × 6m, minimum height of 5m

Note: Can be modified according to actual workshop length
