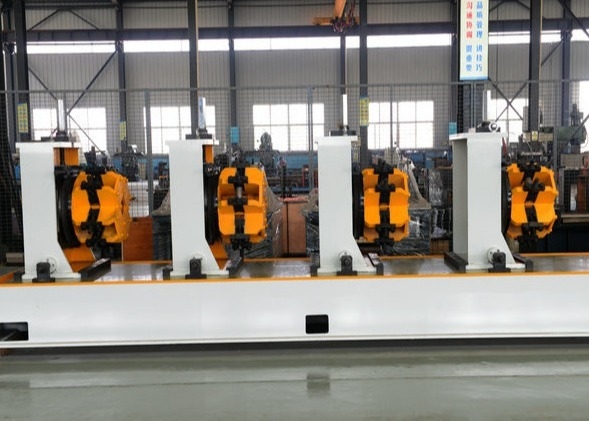

150x150mm Manual or Automatic Square Tube Mill 70X70-150×150mm

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	150

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

150

Production Name:

CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill

Production Name:

CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill

Model:

70X70-150×150mm

Model:

70X70-150×150mm

Feature:

Manual Or Automatic

Feature:

Manual Or Automatic

Other Pipe:

Round Pipe And Rectangular Pipe And Square Pipe

Max Size:

150x150 Mm

Thickness:

2 . 0 - 10 . 0 Mm

Cutting Length:

6 - 15 M

Warranty:

One Year

Key Words:

Manual Or Automatic MAX 150x150 MM Square

Highlight:

High Light

Highlight:

150x150MM welded pipe production line

CE welded pipe production line

150x150MM steel pipe production line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

4 set/year

Product Description

CE MAX 150x150MM Roller Mill Line Manual Or Automatic Square Tube Mill

Product Specifications

Attribute	Value
Model	70X70-150×150mm
Feature	Manual Or Automatic
Compatible Pipe Types	Round pipe, rectangular pipe, square pipe
Max Size	150x150 mm
Thickness Range	2.0 - 10.0 mm
Cutting Length	6 - 15 m
Warranty	One year

Equipment Overview

This CE-certified roller mill line produces round pipes (8.9-190mm diameter) and square/rectangular pipes (70x70mm to 150x150mm) with thickness ranging from 2.0-10.0mm. The production line incorporates innovative design elements from domestic and international equipment, featuring full PC/computer control for advanced operation and maintenance.

Technical Parameters

Material: Hot rolled or cold rolled steel strip (GB700-88, GB1591-88 compliant)
Yield point ≤345Mpa, Tensile strength ≤610Mpa
Steel strip width: 280-600mm (±0.2mm)
Coil specifications:
- Inner diameter: Φ508-760mm (buyer confirmed)
- Outer diameter: Φ1200-2000mm (buyer confirmed)
- Max coil weight: 15,000Kg
Forming speed: 20-50 m/min
Pipe length: 6-12m

Production Process

Complete workflow from steel coil to finished pipe:
