159mm Carbon Steel ERW Pipe Mill for Round Square Rectangular Tubes

Name: 159mm Carbon Steel ERW Pipe Mill for Round Square Rectangular Tubes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG159
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG159

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG159

Production Name:

Round 159 Mm Carbon Steel Erw Pipe Mill

Material:

HRC,CRC,Galvanised Steel

Pipe Diamete:

65-159mm

Pipe Thickness:

2.0-8.0mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Roller Materoal:

Cr12/SKD11

Key Words:

Erw Pipe Mill For Carbon Steel

Highlight:

High Light

Highlight:

159 mm erw pipe mill

round erw pipe mill

159 mm erw tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days/Year

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

Round 159 Mm ERW Pipe Mill For Carbon Steel

Product Overview

The Round 159 Mm Carbon Steel ERW Pipe Mill is designed for manufacturing high-quality welded steel pipes. Incorporating advanced pipe-making technology, this mill produces tubes in various sizes and shapes with exceptional precision.

Key Specifications

Production Name: Round 159 Mm Carbon Steel ERW pipe mill

Material: HRC, CRC, Galvanised Steel

Pipe Diameter: 65-159mm

Pipe Thickness: 2.0-8.0mm

Welding Type: High Frequency Welding

Pipe Shape: Round, square, rectangular

Roller Material: Cr12/SKD11

Production Capabilities

Round pipe size: 65-159mm with thickness 2.0-8.0mm
Square tube size: 50x50-125x125mm with thickness 2.0-7.0mm

Material Specifications

Parameter	Specification
Standard	YB189-64
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa, σs≤275MPa
Strip width	200～500mm
Strip thickness	2.0～8.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ2000mm
Coil Weight	≤8T

Welded Pipe Specifications

Parameter	Specification
Round Pipe Diameter	Φ65～φ159mm
Square tube size	50x50-125x125mm
Pipe thickness	2.0-8.0mm
Finish pipe length	4-8m
Cut length accuracy	±2mm
Forming speed	20-50m/min

Workshop Requirements

8m wide, 120m long, with minimum 6m clearance from ceiling rails to ground.

Available ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

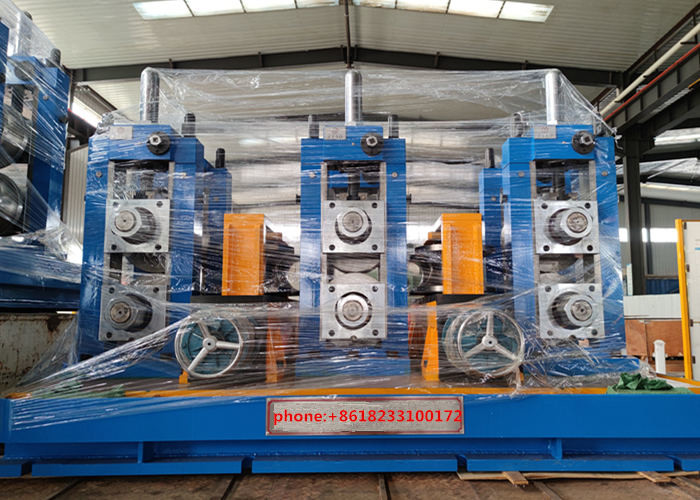

Product Images
