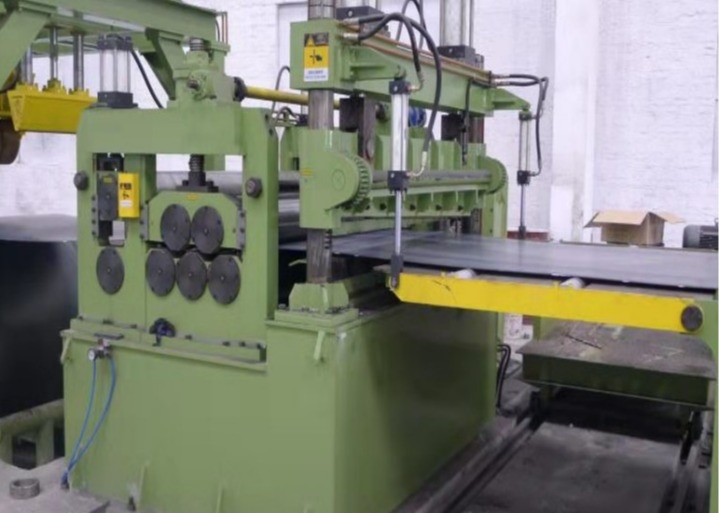

1600mm Steel Slitting Line Machine for 0.5-4mm Thickness

Name: 1600mm Steel Slitting Line Machine for 0.5-4mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 4 X 1600
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	4 X 1600

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

4 X 1600

Name:

Max Width 1600mm Max Thickness 4mm High Performance Steel Slitting Line Machine

Model:

4 X 1600

Feature:

Directly And Stable

Max Size:

4 X 1600 Mm

Thickness:

0.5 - 4 Mm

Cutting Length:

1600 M

Warranty:

One Year

Key Words:

Steel Sheet Slitting Machine Production Line With CE ISO9000 BV

Highlight:

High Light

Highlight:

1600mm Steel Slitting Line

1600mm Slitting Line Machine

Slitting Line Machine high performance

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

120 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

4 set/year

Product Description

Max Width 1600mm Max Thickness 4mm High Performance Steel Slitting Line Machine

Product Specifications

Attribute	Value
Model	4 X 1600
Feature	Directly and Stable
Max Size	4 X 1600 mm
Thickness Range	0.5 - 4 mm
Cutting Length	1600 m
Warranty	One Year
Certifications	CE, ISO9000, BV

Product Overview

This high-performance steel slitting line is designed for continuous longitudinal shearing of strips with widths from 800-1600mm and thicknesses from 0.5-4mm. It processes hot-rolled ordinary carbon structural steel, low-alloy structural steel, and similar materials.

Technical Specifications

Material Specifications

Material: Low carbon HRC (Q235, σs=250Mpa, σb=500Mpa)
Coil Thickness: 0.5-4.0 mm
Coil Width: 300-1600mm
Coil Weight: ≤20 t
Inner Diameter: Φ508/610
Outer Diameter: ≤Φ1800mm

Finished Product Specifications

Coil Weight: 20t
Inner Diameter: Φ508mm
Outer Diameter: Φ1800mm
Width Precision: ±0.10 mm (thickness 0.5-3.0), ±0.20 mm (thickness 3.1-4.0)
Burr Accuracy: ≤5% Plate thickness (0.08-0.20mm)
Coils Open Speed: 90-120m/min

Equipment Specifications

Power: 380V, 50HZ, Installed power approx. 330kw
Air Power: Pressure 0.4-0.6Mpa, Air demand 0.2m³/min (State of compression)

Equipment Composition

No.	Component
1	Coil preparation stage
2	Coil car
3	Uncoiler with pressure leading device
4	Clamp & Straightener
5	Shearing
6	1# Accumulator
7	Guiding device
8	Pinch roll
9	Slitter machine
10	Edge rewinder
11	Wear tape table and material tail pressing plate
12	2# Accumulator
13	Separation device
14	Tension plate
15	3-roll tension burr extruding machine
16	Steering roller and feed head guide plate
17	Recoiler + Coiling support
18	Unloading car
19	Spacer and other process parts
20	Hydraulic pneumatic system
21	Electric system
22	Oil pipe, Air pipe, cables
23	Anchor bolts and accessories

Note: Equipment configuration can be customized according to customer requirements.

Quality Commitment & Service

One-year equipment warranty with long-term maintenance support
Comprehensive documentation including assembly drawings, foundation drawings, piping layouts, electrical schematics, and wearing parts drawings
Dedicated technical service team available for immediate response and on-site support
