Home > products >
ERW Pipe Mill
>
165mm ERW Pipe Mill for Carbon Steel Round Square Rectangular Tubes
  • 165mm ERW Pipe Mill for Carbon Steel Round Square Rectangular Tubes
  • 165mm ERW Pipe Mill for Carbon Steel Round Square Rectangular Tubes
  • 165mm ERW Pipe Mill for Carbon Steel Round Square Rectangular Tubes
  • 165mm ERW Pipe Mill for Carbon Steel Round Square Rectangular Tubes

165mm ERW Pipe Mill for Carbon Steel Round Square Rectangular Tubes

Product Details:
Place of Origin: China
Brand Name: TENG TIAN
Certification: ISO9001/BV
Model Number: HG165.2
Detail Information
Place of Origin:
China
Brand Name:
TENG TIAN
Certification:
ISO9001/BV
Model Number:
HG165.2
Product Name:
Erw Green High Frequency Welded Tube Mill Diameter 165mm
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Pipe Material:
Carbon Steel
Voltage:
380V
Power(w):
400KW
Speed:
60 M / Min
Pipe Shape:
Round, Square & Rectangular
Round Pipe Diameter:
76.3mm-165.2mm
Warranty:
1 Year
Keywords:
Diameter 165mm ERW Pipe Mill
Highlight:

High Light

Highlight:

erw high frequency welded tube mill

,

green high frequency welded tube mill

,

diameter 165mm erw tube mill

Trading Information
Minimum Order Quantity:
1set
Price:
$100000 to $1 million
Packaging Details:
Seaworthy packing
Delivery Time:
3 months
Supply Ability:
150 units a year
Product Description
ERW Green High Frequency Welded Tube Mill Diameter 165mm
Product Specifications
Attribute Value
Product name Erw Green High Frequency Welded Tube Mill Diameter 165mm
After-sales service Engineers available to service machinery overseas
Pipe material Carbon Steel
Voltage 380V
Power 400KW
Speed 60 m/min
Pipe Shape Round, Square & Rectangular
Round Pipe Diameter 76.3mm-165.2mm
Warranty 1 year
Product Overview
The HG 165.2x9(7") high precision high frequency welded pipe production line is designed for structural pipe manufacturing. It produces:
  • Round pipes: 76.3-165.2mm diameter with 2.0-9.0mm thickness
  • Square pipes: 75x75-150x150mm with 2.0-9.0mm thickness
  • Rectangular pipes: 100x50-200x100mm with 2.0-9.0mm thickness
This production line incorporates innovative design elements from domestic and international equipment, featuring full PC/computer control with advanced technology for convenient operation and maintenance.
ERW Pipe Mill Models
Serial No. Model Thickness(mm) Specification(mm) Speed(m/min) Main Engine(kw) Power(kw) Area
1 H20 0.3-1 8-20 30-120 55 60 7*50
2 H32 0.3-2.0 12-32 30-120 75 100 7*50
3 H50 0.8-2.5 16-50 30-110 110 150 7*60
4 H60 0.8-3 20-60 30-100 132 200 7*65
5 H76 1-3 12-76 30-100 320 250 8*80
6 H89 1-4 32-89 30-80 350 300 8*80
7 HG114 1.5-5 45-114 30-60 400 300 10*100
8 HG165 3-7 60-165 30-50 600 400 10*110
9 HG219 4-8 114-219 20-40 800 500 12*150
10 HG273 4-10 114-273 15-30 1000 600 18*160
11 HG325 4-12 165-325 10-30 1200 600 18*180
12 HG426 4-16 165-426 8-25 1400 800 18*180
13 HG508 4-20 219-508 8-20 2000 1000 21*180
Production Process
  • Loading car
  • Uncoil
  • Cutting and Welding
  • Accumulator
  • Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
  • STD Cold-cutting saw
  • Transmitting
  • Hydrostatic testing
  • End facer
  • Straightener
  • Packing
  • Storage

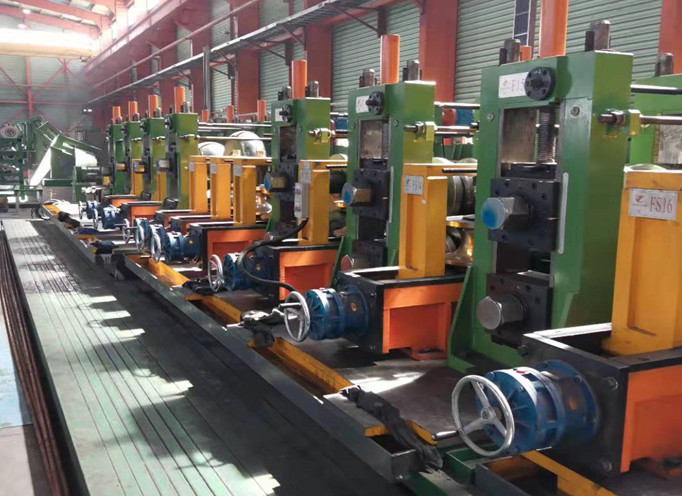

165mm ERW Pipe Mill for Carbon Steel Round Square Rectangular Tubes 0
Our Service Commitment
  • On-site engineer support for installation and operator training
  • One year quality guarantee with lifetime repair support
  • Comprehensive pre-sales and after-sales services including workshop design and production output planning
  • Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
  • Complete project design services for stainless steel and carbon steel pipe production
  • Full responsibility for loading and shipping arrangements
165mm ERW Pipe Mill for Carbon Steel Round Square Rectangular Tubes 1 165mm ERW Pipe Mill for Carbon Steel Round Square Rectangular Tubes 2
