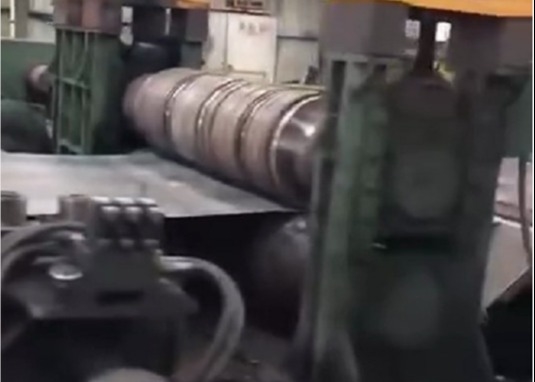

1-8mm Steel Slitting Machine 2000mm Width 0-40m/min Cutting Speed

Name: 1-8mm Steel Slitting Machine 2000mm Width 0-40m/min Cutting Speed
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ( 1-8mm) *2000mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Hebei Tengtian
Certification:	CE
Model Number:	( 1-8mm) *2000mm

Detail Information

Place of Origin:

China

Brand Name:

Hebei Tengtian

Certification:

Model Number:

( 1-8mm) *2000mm

Name:

1-8mm *2000mm Steel Slitting Machine Cutting Speed 0-40m/Min

Max Width:

200mm

Thickness Range:

1-8mm

Cutting Currency:

±0.1mm

Cutting Speed:

0-40m/min

The Loading-bearing Capacity Of The Decoiler:

30T

Inner Diameter:

500-800mm

Outer Diameter:

2100mm

Highlight:

High Light

Highlight:

1mm steel slitting machine

40m/min steel slitting machine

high speed steel coil slitting line

Trading Information

Minimum Order Quantity:

Price:

$100000 to $1 million

Packaging Details:

container

Delivery Time:

1 month

Payment Terms:

L/C,,T/T

Supply Ability:

Product Description

1-8mm *2000mm Steel Slitting Machine Cutting Speed 0-40m/Min

Product Specifications

Attribute	Value
Max Width	200mm
Thickness Range	1-8mm
Cutting Accuracy	±0.1mm
Cutting Speed	0-40m/min
Loading Capacity of Decoiler	30T
Inner Diameter	500-800mm
Outer Diameter	2100mm

Product Description

This high-performance steel slitting machine is designed for precision cutting of steel strips with thickness ranging from 1-8mm and maximum width of 2000mm.

Equipment Specification

(1-8mm) *2000mm

Process Flow

Loading coil
Decoil
Press and lead steel strip
Simply calibrate steel strip
Guide
Slit
Collect the edges
Pre-separation
Press the strip
Separate the steel strip
Coil
Pack

Main Technical Parameters

Material of the strip: Hot-rolled stainless steel strip (4-6mm), Ordinary carbon steel strip (1-8mm)
Strip thickness: 1-8mm
Strip width: 2000mm
Cutting accuracy: ±0.1mm
Cutting speed: 0-40m/min
Load-bearing capacity of decoiler: 30T
Inner diameter of coil: ф500-800mm
Outer diameter of coil: 2100mm
Tool shaft diameter: ф300mm, Material: 40Cr
Cutter blade: ф300*ф450*40; 28 pieces
Blade material: 6CrW2Si
Blade hardness: HRC58-60
Inner diameter of coiler: ф760mm
Power supply: 380V, 50Hz, Three-phase electricity

Other Models of Slitting Line

Model (mm)	Plate Thickness (mm)	Plate Width (mm)	Steel Coil Weight (T)	Finished Width (mm)	Shear Article Number	Shear Speed (m/min)
3×500	0.4-3	100-500	7	≥30	≤6	140
3×600	0.4-3	100-600	8	≥30	≤6	140
3×800	0.5-3	200-800	10	≥30	≤8	140
3×1250	0.5-3	400-1250	15	≥30	≤10	120
3×1500	0.5-3	600-1500	20	≥30	≤12	120
3×1800	0.5-3	900-1600	30	≥40	≤13	120
4×1600	0.5-4	900-1600	30	≥60	≤13	120
6×1600	1-6	900-1600	30	≥60	≤10	110
8×2000	2-8	900-2000	35	≥70	≤6	100
10×2200	3-10	900-2200	35	≥80	≤5	80
12×2200	3-12	900-2200	35	≥100	≤5	50
16×2500	4-16	900-2500	35	≥100	≤5	40
20×2500	6-20	900-2500	35	≥100	≤4	40
