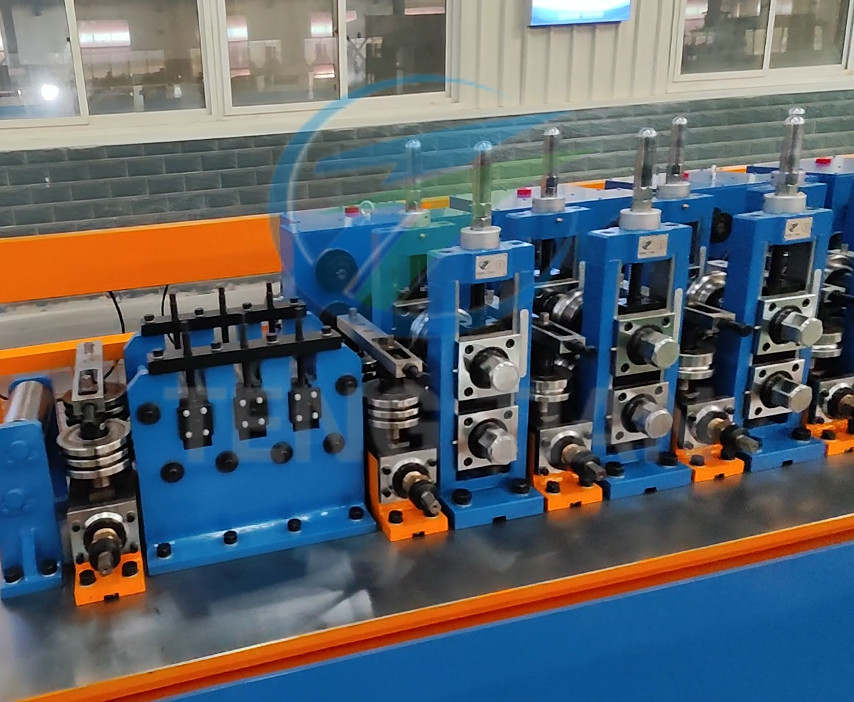

200KW HF Solid State Welder Carbon Steel Pipe Manufacturing Machine

Name: 200KW HF Solid State Welder Carbon Steel Pipe Manufacturing Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HT20-219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HT20-219

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HT20-219

Product Name:

Carbon Steel Pipe Manufacturing Machine 200KW HF Solid State Welder

Product Speed:

Max 20-120m/min

Pipe Diameter:

Up To The Tube Mill Size

Pipe Thickness:

Up To The Tube Mill Size

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Function:

Roller Leveling

Keyword:

Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

Carbon Plate Steel Pipe Manufacturing Machine

Roller Leveling Steel Pipe Manufacturing Machine

Carbon Plate Steel Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Carbon Steel Pipe Manufacturing Machine 200KW HF Solid State Welder

Product Specifications

Attribute	Value
Product Name	Carbon Steel Pipe Manufacturing Machine 200KW HF solid state welder
Product Speed	Max 20-120m/min
Pipe Diameter	Up to the tube mill size
Pipe Thickness	Up to the tube mill size
Type of Welding	High frequency welding
Special Requirements	Can design according to customer specifications
Function	Roller Leveling

Product Description

This Carbon Steel Pipe Manufacturing Machine with 200KW HF solid state welder is designed to flatten the tip of steel strips from the uncoiler, facilitating easier cutting and welding of irregular strip sections. The unit specializes in straightening wide and thick steel strips that cannot be processed manually.

Tube Mill Production Process

Material (steel coil) → Uncoiler → Shear and Welder → Horizontal (or Cage) Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Rough Straightening (Turkey Head) → Cut Off Machine → Run Out Table

ERW Tube Mill Model Specifications

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Note: Specifications are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to customer requirements.
