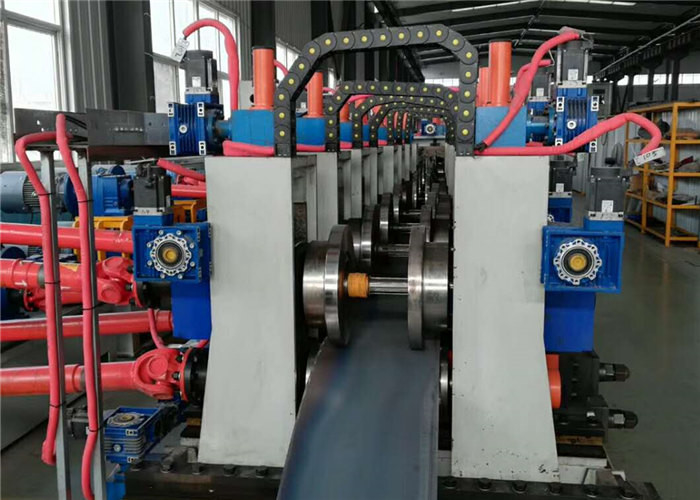

200x200mm Carbon Steel Automatic Tube Mill for 4-12mm Thickness

Name: 200x200mm Carbon Steel Automatic Tube Mill for 4-12mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: F200x200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	Hebei TengTian
Certification:	CE, ISO9001
Model Number:	F200x200

Detail Information

Place of Origin:

CHINA

Brand Name:

Hebei TengTian

Certification:

CE, ISO9001

Model Number:

F200x200

Product Name:

Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick

Pipe Thickness:

4-12mm

Pipe Size:

80*80-200*200mm

Pipe Material:

Carbon Steel,G.I Steel

Feature:

Full Automatic

Key Words:

Tube Mill For Sale

Highlight:

High Light

Highlight:

200x200 automatic tube mill

carbon steel square automatic tube mill

12mm thick square tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

180 days after sign contract

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

50 Sets/Year

Product Description

Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick

Attribute	Value
Product name	Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick
Pipe thickness	4-12mm
Pipe size	8080-200200mm
Pipe Material	Carbon steel, G.I Steel
Feature	Full automatic

Introduction

This automatic tube mill features a combined mold system that can produce tubes of different specifications with simple adjustments, eliminating the need for mold changes. The roller savings rate exceeds 90%, significantly reducing roller costs while improving efficiency.

Key advantages include:

Motorized automatic adjustment reduces labor requirements and costs
Simplified operation lowers worker intensity and improves working conditions
User-friendly interface requires only basic size and thickness inputs
Reduced tool wear and equipment damage during roll changes
Extended equipment service life through automated processes

Product Specifications

Standard	SPHC, Q235, Q345
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤520Mpa, σs≤365MPa
Pipe size	80x80-200x200mm
Pipe thickness	4.0-12.0mm
Pipe length	6-14 meter
Pipe-cutting Precision	0-6mm
Work shop	120x8m, H＞6m (crane to ground)
Power	Approx.500KW 380V/50Hz/3phases

Machine Models

Model	Pipe size	Pipe thickness
LW200	30X30-50X50mm	1.0-3.0mm
LW400	50x50-100x100mm	1.0-4.0mm
LW600	60x60-150x150mm	3-10mm
LW800	80x80-200x200mm	4-12mm
LW1000	100x100-250x250mm	4-16mm
LW1200	120x120-300x300mm	4-16mm
LW1600	200x200-400x400mm	5-14mm
LW2000	250x250-500x500mm	5-20mm

Quality and Service Warranty

Our comprehensive service package includes:

On-site technical support for machine installation, operation, and maintenance
Training for your equipment operation and maintenance personnel
Full one-year warranty for the complete production line
