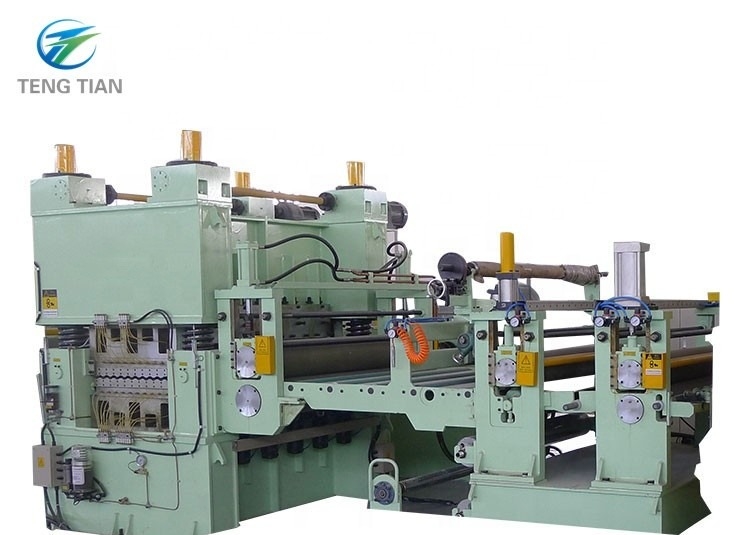

240KW PLC Steel Slitting Machine for Carbon Steel 1-6mm

Name: 240KW PLC Steel Slitting Machine for Carbon Steel 1-6mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 800~2000mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	800~2000mm

Detail Information

Place of Origin:

Hebei，China

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

800~2000mm

Mill Speed:

120m/min

Warranty:

1 Year

Power:

240KW

Weight:

Max 30 Ton

Control:

PLC

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Coil Width:

800~2000mm

Thickness Range:

1-6mm

Material:

Carbon Steel

Name:

CE Tube Strip Metal Sheet 240kw Steel Slitting Machine

Highlight:

High Light

Highlight:

CE Steel Slitting Machine

120m/min Steel Slitting Machine

240KW Steel Slitting Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

40 Sets/Year

Product Description

CE Tube Strip Metal Sheet 240kw Automatic Steel Slitting Machine

Key Specifications

Attribute	Value
Mill speed	120m/min
Warranty	1 Year
Power	240KW
Weight	Max 30 Ton
Control	PLC
After-sales Service	Engineers available to service machinery overseas
Coil Width	800~2000mm
Thickness Range	1-6mm
Material	Carbon Steel

Product Overview

The CE Tube Strip Metal Sheet 240kw Automatic Steel Slitting Machine is primarily composed of uncoiler, feeder, slitter and recoiler. Its function is to slit wide coils into specified width strips along the length direction, which can then be used for milling, welding pipes, cold bend forming, and stamping as billet. Different material blades can be used to slit various metal coils.

Technical Parameters

Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate
Strip thickness: 5~20mm
Strip width: 800~2000mm
Max coil weight: 40000kgs
Diameter of leveling rollers & tensioning roller: Φ260
Diameter of slitter shaft: Φ420
Disc cutters: 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm
Diameter of recoiler block: Φ800mm
Separating discs: 65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler: 280KW, 315KW
Slitting speed: 0~20 m/min (adjustable)

Production Process

Loading coil car → Uncoiler → Straightener device → Pinch roll & leveler & hydraulic shearer → Loop pit → Side guide → Slitter → Transition platform & scrap winder → Loop pit → Tension station → Recoiler → Unloading coil car.

Model Specifications

Model	Plate thickness	Plate width	Steel coil weight	Width of finished	Shear Speed
3*1250mm	0.5-3.0mm	700-1250mm	25 Ton	<40mm	120(m/min)
4*1250mm	0.5-4.0mm	700-1250mm	25 Ton	<40mm	120(m/min)
6*1250mm	0.5-6.0mm	700-1250mm	25 Ton	<40mm	120(m/min)
3*1600mm	0.5-3.0mm	900-1600mm	30 Ton	≥40mm	120(m/min)
4*1600mm	0.5-4.0mm	900-1600mm	30 Ton	≥60mm	110(m/min)
6*1600mm	1-6mm	900-1600mm	30 Ton	≥60mm	100(m/min)
8*2000mm	2-8mm	900-2000mm	35 Ton	≥70mm	60(m/min)
10*2200mm	3-10mm	900-2200mm	35 Ton	≥80mm	50(m/min)
12*2200mm	3-12mm	900-2200mm	35 Ton	≥100mm	40(m/min)
16*2500mm	4-16mm	900-2500mm	35 Ton	≥100mm	40(m/min)
20*2500mm	6-20mm	900-2500mm	35 Ton	≥100mm	30(m/min)

Note: These models are for reference only. The product range and thickness are adjustable. Our engineering team can design machines according to specific customer requirements.
