25-95mm Carbon Steel Tube Mill Machine 100m/min Fast Speed

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	76

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

Production Name:

Carbon Steel Pipe Making MachineTube Mill Machine

Application:

Natural Gas,Drain Pipe,3 NB Tube Production

Voltage:

380V/220V

Pipe Diameter:

25-95mm

Thickness:

1-3.5mm

Speed:

20-100m/min

Key Words:

Tube Mill Machine

Highlight:

High Light

Highlight:

95mm carbon steel tube making machine

25mm carbon steel tube making machine

Tube Making Machine Speed Fast Speed

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

50 Sets/Year

Product Description

Diameter 25mm-95mm Carbon Steel Tube Mill Machine Speed Fast Speed 100m/Min

Product Attributes

Attribute	Value
Production Name	Carbon Steel Pipe making machine Tube Mill Machine
Application	Natural gas, Drain Pipe, 3 NB Tube Production
Voltage	380V/220V
Pipe diameter	25-95mm
Thickness	1-3.5mm
Speed	20-100m/min
Key words	Tube Mill Machine

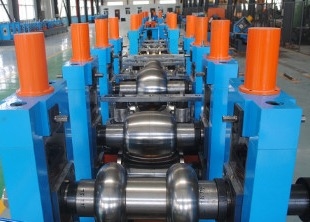

Blue Color Pipeline Diameter 25-95mm Speed 100m/min Tube Mill Machine

Pipe Making Machine Production Process:

Uncoiler → Shear & welding machine → Accumulator (Cage) → Forming machine → HF welding → Sizing machine → Flying saw (Cold saw) → Run out table → hydro testing → end facing for API standard. We can equip online testing equipment, like Hydro testing equipment, End facing equipment, UT testing, ECT testing etc.

Product Introduction:

HG76 High-Frequency Welded Pipe Mill Line is designed to produce welded pipes of Ф25～95mm in diameter and 1～3.5mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Welded Pipe Mill Specifications

Material Specifications

Conforming to the standard	YB189-64
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa, σs≤275MPa
Strip width	50～240mm
Strip thickness	0.4～2.75mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3.0T

Tube Mill Machine Pipe Specification

Round Pipe Diameter	55×55－160×160mm
Pipe thickness	0.4-2.75mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	60-120m/min

Power, Water & Air Supply

Power Volume of the Line	Approx. 600KW
Power Source	380V/60Hz/3phases
Circulation Cooling Water Flow	20T/h～30 T/h
Pool Volume	30m³
Compressed Air Flow	5m³/min
Pressure	5～11kg/cm²

Workshop Requirements

6m wide, 70m long, at least 5m high from Ceiling Rails to Ground.

About Factory

Our Service

We will send the engineer for the installation and training your workers how to operate this machine correctly.
Warranty Team: One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
We supply the pre-sell and after-sell service including workshop design, production output design, installation and training, and skilled engineer support.
We can also send the engineer working for you several months or 1 year to help improve output, reduce waste and decrease cost.
We supply pre-sell service - Design for whole project for stainless steel pipe making/carbon steel pipe making.
We will be responsible for the loading and shipping.
