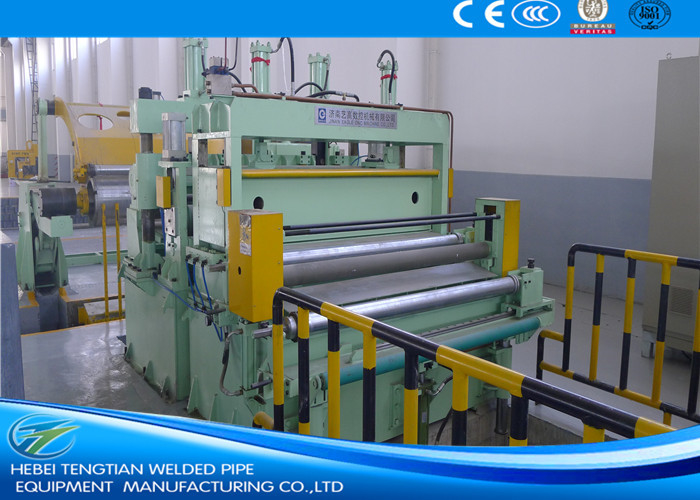

30T Max Coil Weight Steel Slitting Machine for HRC CRC Galvanised Steel

This middle thick steel coil slitting line is designed to process steel coils with thickness ranging from 0.6~5 mm, 1~6 mm, 2-8mm or 3~10mm, and widths from 600~1600 mm, 800~1800mm or 800~2000mm into narrower strips. Ideal for supplying steel strip coils to cold rolling mills, welded pipe mills, and roll forming machines.

• Double mandrel uncoiler designed for heavy coils up to 30 tons, accommodating standard inner diameters Φ508mm, Φ610mm, and Φ760mm
• Optional double cone design supports a wider range of inner diameters from Φ480-800mm
• Precision-engineered disc knives ensure minimal burrs (±0.10mm/m) and exact width tolerance (+/-0.05mm)
• Torque motor-driven edge scrap reeler for uniform winding
• Optional double slitter configuration for continuous operation during blade changes
• Hydraulic press rollers prevent strip head from falling during feeding
• Automatically adjusting recoiling press maintains consistent tension as coil diameter increases

Coil-loading → Double-mandrel uncoiler → Coil-head-feeding, press & shoveling → Double-roller pinch feeding, five-roller leveling → End-cutting → Hole Accumulator(1) → Strip-aligning → Disc shearing → Scrap reeling → Hole Accumulator(2) → Pre-separator/Tensioner/length-measuring roller → Recoiling/Coils press & separator → Coils-discharging → Hydraulic control → Electric control

Note: Specifications are reference values based on general ranges. Each slitting machine is custom-designed to meet specific customer requirements.

Our slitting lines are fully customizable to your specific requirements. Provide your parameters and our engineers will design an optimal machinery solution for your production needs.
