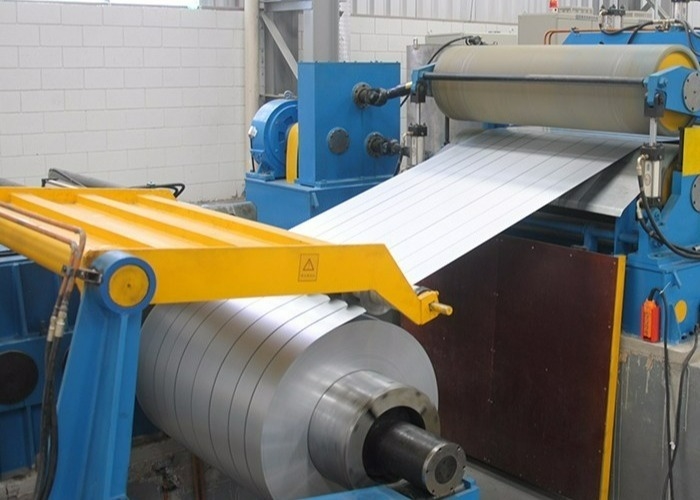

35000Kg Capacity 3-14mm x 1600mm Steel Coil Slitting Machine

Name: 35000Kg Capacity 3-14mm x 1600mm Steel Coil Slitting Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 3- 14X 1600 mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	3- 14X 1600 mm

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

3- 14X 1600 mm

Name:

Coil Weight Max 35000Kg 3~14mm×1600mm Metal Coil Steel Slitting Machine

Model:

3 X 1600

Feature:

Directly And Stable

Max Size:

14 X 1600 Mm

Thickness:

3 - 14 Mm

Cutting Length:

1600 M

Warranty:

One Year

Key Words:

3~14mm×1600mm Steel Coil Slitting Machine

Highlight:

High Light

Highlight:

35000Kg metal coil slitting machine

metal coil slitting machine high potency

metal slitting line high potency

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

120 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

4 set/year

Product Description

Coil Weight Max 35000Kg 3~14mm×1600mm Metal Coil Steel Slitting Machine

Attribute	Value
Name	Coil Weight Max 35000Kg 3~14mm×1600mm Metal Coil Steel Slitting Machine
Model	3 X 1600
Feature	Directly and Stable
Max size	14 X 1600 mm
Thickness	3 - 14 mm
Cutting Length	1600 m
Warranty	One year

General Introduction

This production line is suitable for continuous longitudinal shearing of strips with a width of 800-1500mm and thickness of 0.5-3mm for hot-rolled ordinary carbon structural steel, low-alloy structural steel and other materials. Referred to as 1500 × 0.5 ~ 3mm slitting unit.

Main Technical Parameters

Machine Data:

Equipment name: Slitting Line
Model: 14×1600
Work process: Storage→Feeding→Uncoiling→Feeding→Pinch→Pre-leveling→Hydraulic Shear→Loop Bridge→Deflection Correction→Slitting→Edge Coiling→Loop Bridge→[Function 1]→Separation→Pinch→Tension Roller→Feeding→Rewinding→Unloading→[Function 2]→Roller table→Deflection correction→pinch→fine leveling→length measurement→tail pinch→cutting→lifting and stacking

Processing Material Parameters:

Inlet material parameters:

Material: hot rolled steel coil Q235B/Q355B (σs≤400MPa, σb≤550MPa)
Coil thickness: 3mm～14mm (Q235B) / 3mm～12mm (Q355B)
Coil width: 700mm～1600mm
Coil inner diameter: Φ610mm, Φ760mm
Coil outer diameter: Φ1000mm～Φ2200mm
Coil weight: Max. 35000Kg

Outlet material parameters:

1) Cross-cut finished product parameters:

Length accuracy: length ≤±1.0mm/L=2m
Diagonal ≤±1.5mm/L=2m
Flatness: better than GB709-2006 national standard
Palletizing length: 2000mm～12000mm
Palletizing height: Max.400mm
Palletizing load: Max.15000Kg

2) Slitting finished product parameters:

Slitting capacity: up to 3 strips (when the plate thickness is 13-14mm, excluding waste edges)
Maximum 4 strips (when the plate thickness is 11-12mm, excluding waste edges)
Maximum 6 strips (when the plate thickness is 9-10mm, excluding waste edges)
Maximum 8 strips (when the plate thickness is 7-8mm, excluding waste edges)
Maximum 10 strips (when the plate thickness is 3-6mm, excluding waste edges)
Straightness accuracy: ≤0.5mm/1000mm (when strip width ≥140mm, excluding side waste)
Slitting width: Min.120mm
Width tolerance: ±0.3mm
Rewinding inner diameter: Φ610mm
Rewinding weight: Max.35000Kg
Tower tolerance: ≤±10mm (3-5 circles inside and outside are not counted)

Machine Basic Data:

Design speed: Max.15-30m/min (at open time, adjust according to plate thickness and material) / Max.30-80m/min (when winding, adjust according to the thickness and material of the plate)
Unit direction: From left to right or From right to left (facing the unit on the operating table)
Power supply: three-phase AC 380V, 50Hz
Floor area: ≈65m×11m (L×W)
Use environment: Ambient temperature: -10℃～40℃ / Relative humidity: ≤80%
Protection class: IP40

Product Design Concept

Reliability: Designed and manufactured with high reliability to ensure normal and continuous operation
Safety: Equipped with reliable protection and safety devices for mechanical, hydraulic and electrical systems
Environmental protection: Hydraulic oil can be reliably recovered and recycled with no leakage
Energy saving: High transfer efficiency units combined with improved product accuracy to reduce consumption
Ease of operation: User-friendly interface with convenient man-machine dialogue

Key Features

Main power driven by DC motor for stable rotational speed and torque at low speed
Controlled by high-end PLC system with touch screen operation
Zeye's self-developed control system (2018SR678630) for high efficiency and low energy consumption
Hard tooth surface gear reducer with high transmission efficiency and minimal wear
Strict quality control in production process including annealing, sandblasting, and CNC machining
Manufactured in compliance with national standards for superior quality and service

Product Reference Images

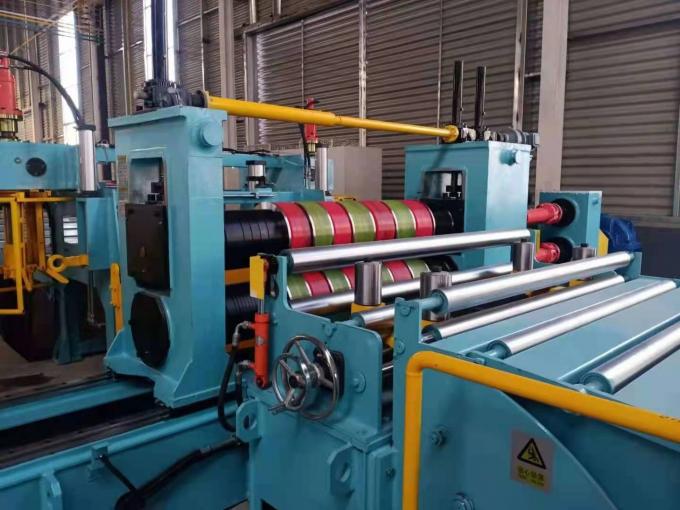

3~14mm×1600mm Steel Coil Slitting Machine - Front View

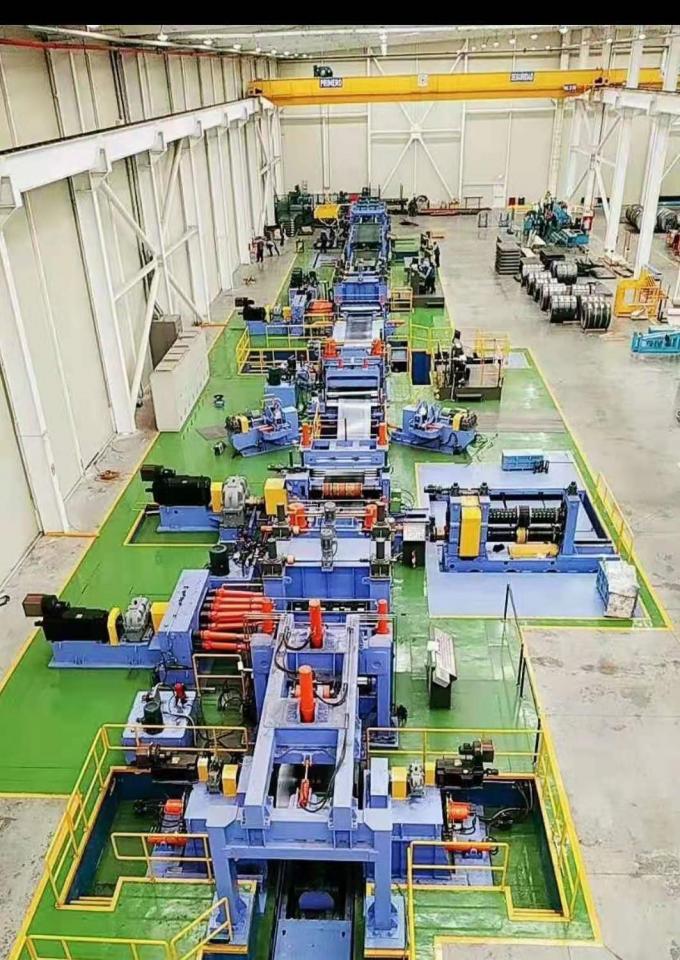

3~14mm×1600mm Steel Coil Slitting Machine - Side View
