3mm 100x100mm Automatic Tube Mill for Carbon Steel Square Pipe

Name: 3mm 100x100mm Automatic Tube Mill for Carbon Steel Square Pipe
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 100x100
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	100x100

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

100x100

Machine Name:

3mm 100x100mm Automatic Tube Mill High Frequency Welded Automatic

Product:

Square Pipe

Feature:

PLC Control

Material:

Carbon Steel

Other Pipe:

Only Square Pipe

Max Size:

100x100mm

Thickness:

3mm

Length:

6-12m

Rollers:

Include

Model:

100x100

Key Words:

Automatic Tube Mill

Highlight:

High Light

Highlight:

100x100mm square pipe mill

high frequency welded square pipe mill

3mm automatic tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

3mm 100x100mm Automatic Tube Mill High Frequency Welded Automatic

Product Specifications

Attribute	Value
Machine Name	3mm 100x100mm Automatic Tube Mill High Frequency Welded Automatic
Product	Square pipe
Feature	PLC control
Material	Carbon steel
Max size	100x100mm
Thickness	3mm
Length	6-12m
Rollers	Included
Model	100x100

Machine Overview

The 3mm 100x100mm Automatic Tube Mill High Frequency Welded Automatic is designed to produce welded steel pipes through an automated process. Utilizing advanced roll pass design, this production line manufactures high-quality welded steel pipes with precision machining and assembly.

Technical Specifications

Material Specifications

Standard: International standard tube mill machine

Material: Carbon steel

Mechanical properties: σb≤520Mpa, σs≤365MPa

Strip Width: 200-400mm

Strip Thickness: 1-3mm

Inner Diameter of Coils: Φ508mm

Outer Diameter of Coils: Φ1300～φ2000mm

Coil Weight: ≤5T

Pipe Specifications

Pipe Diameter: Square pipe 50x50-100x100mm

Thickness: 1-3mm

Length: 6-12m

Pipe-cutting Precision: 0-6mm

Forming Speed: max 100m/min for 1mm thickness

Buyer Requirements

Workshop: 95x12m, H＞5m (crane to ground)

Power: Approx. 850KW 380V/60Hz/3phases

Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m³

Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²

Cable: All cable outside of machine to be provided by buyer

Production Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling, accurate pipe diameter sizing
Accurate pipe length sizing and cutting
Inspection
Packaging

Quality Assurance & Service

Upon arrival at the buyer's facility, our technical service personnel will conduct on-site debugging, maintenance, and equipment commissioning. We provide comprehensive operation and maintenance instructions, along with technical training for the buyer's equipment operation and maintenance personnel.

When used according to specifications under normal operating conditions, the equipment comes with a 12-month warranty from the date of arrival. In case of quality issues or component failure that prevents normal operation, we will provide free repairs or replacements.

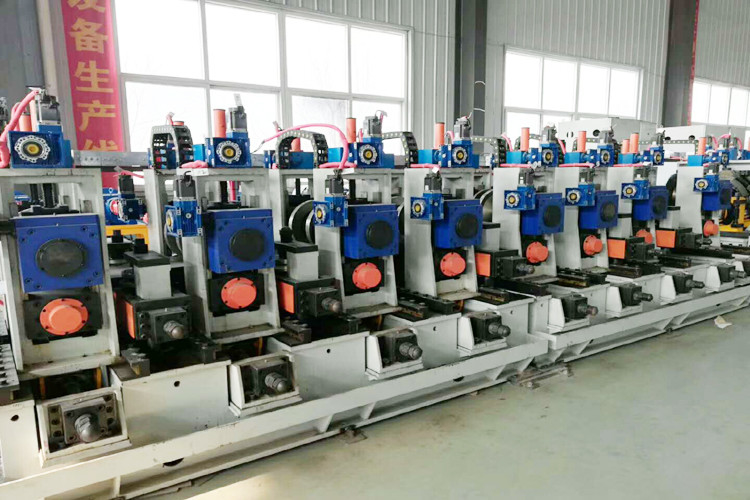

Product Images
