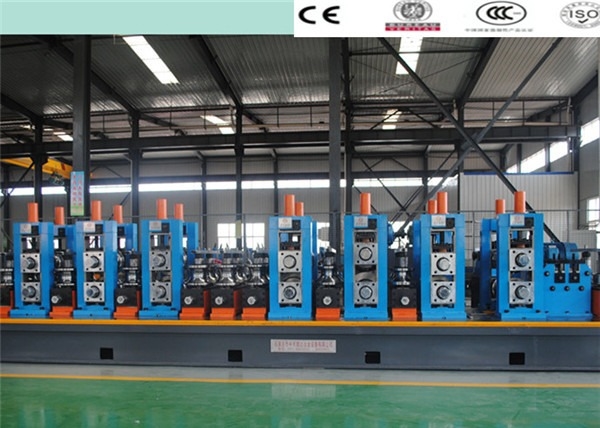

60-140mm High Frequency Welding Steel Pipe Production Line 100m/min

Name: 60-140mm High Frequency Welding Steel Pipe Production Line 100m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG165
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO9001 BV
Model Number:	HG165

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO9001 BV

Model Number:

HG165

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Product Speed:

Max 100m/min

Pipe Diameter:

60-140mm

Pipe Thickness:

1.5-5.0mm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Highlight:

High Light

Highlight:

100m/min straight seam welding machine

60mm straight seam welding machine

1.5mm straight seam welding machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

100m/Min 60mm Dia Straight Seam Welding Machine Steel Pipe Production Line

Product Attributes

Attribute	Value
Material	Carbon steel, stainless steel, low alloy steel
Product Speed	Max 100m/min
Pipe Diameter	60-140mm
Pipe Thickness	1.5-5.0mm
Type of Welding	High frequency welding
Special Requirement	Can design according to customer specifications

Product Overview

ERW Pipe Mill/Tube Mill - High-Frequency Welded Pipe Production Line designed for manufacturing precision welded pipes.

Quick Details

Condition	New
Type	Pipe Production Line
Pipe Material	Carbon Steel, Stainless Steel, Galvanized Steel
Application	Energy Supply Pipe
Production Capacity	20-90m/min
Place of Origin	Hebei, China
Brand Name	Tengtian
Model Number	HG165
Voltage	380V/220V
Power	200KW
Dimensions (L×W×H)	38m × 4m × 1.6m
Weight	5-15T
Certification	CE, ISO9001, BV
Warranty	1 Year
After-sales Service	Engineers available for overseas machinery service

Technical Specifications

Adaptable materials: Hot rolled or cold rolled steel strip (Low carbon steel and low alloy constructional steel)
Processing range: Round pipe Φ60-Φ140mm, Square/Rectangular pipe 50x50-110x110mm
Thickness range: Round pipe 1.5-5.0mm, Square/Rectangular pipe 1.5-4.5mm
Installed capacity: 800KVA
Water consumption: 50m³/h
Solid-state high-frequency Welder: 300KW or 400KW
Workshop requirements: 50m × 12m × 6m (L×W×H)
Forming speed: 40-60m/min

Model Specifications

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main Power(kw)	HF Welder(KW)	Area(m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Supply & Delivery

Supply Ability: 120 Set/Sets per Year
Packaging Details: Wooden case
Port: Tianjin Port
Lead Time: Shipped in 60 days after payment
