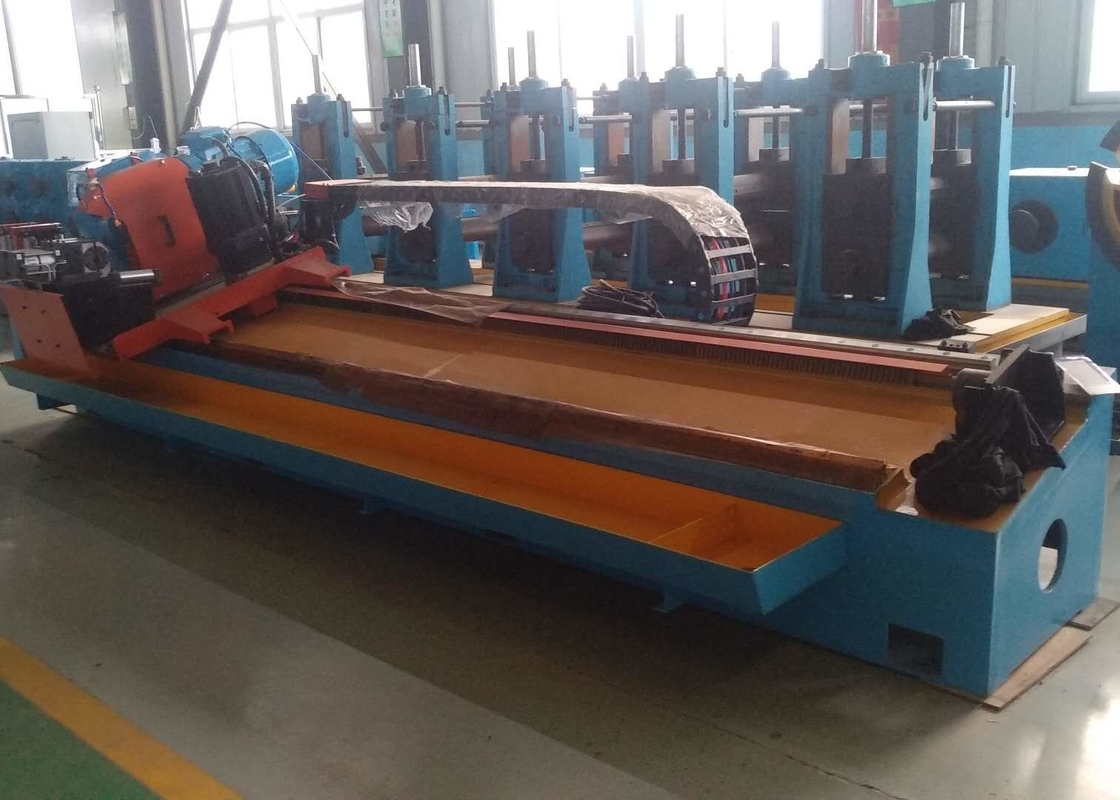

60mm ERW Steel Welded Pipe Mill for Round and Square Tubes

This ERW pipe mill is designed to produce high-quality welded steel pipes including round, square, and deformed pipes. Featuring precision roll pass design, the production line ensures excellent machining quality and high assembly precision.

• Standard: Carbon steel, hot galvanized steel
• Material: Low carbon steel and low alloy constructional steel
• Mechanical properties: σb≤520Mpa, σs≤365MPa
• Strip Width: 110-200mm
• Strip Thickness: 0.9-3mm
• Coil Dimensions: Inner Φ508mm, Outer Φ1300-2000mm
• Coil Weight: ≤11T

• Pipe Diameter: Round: φ38-60mm; Square: 30x30, 40x40, 50x50mm; Rectangular: 40x20, 50x30, 60x40mm
• Thickness: 0.9-3.0mm
• Length: 6m
• Cutting Precision: 0-6mm
• Forming Speed: Max 160m/min for 2mm thickness

• Workshop: 95x12m, H＞5m (crane to ground)
• Power: Approx. 850KW 380V/60Hz/3phases
• Cooling Water: Flow: 30+30 CBM, Pool Volume: 40m³
• Compressed Air: Flow: 5m³/min, Pressure: 5-7kg/cm²
• Cables: All external cables to be supplied by buyer

Our technical personnel will provide on-site debugging, maintenance, and commissioning services upon equipment arrival. We offer comprehensive training for operation and maintenance personnel. The equipment comes with a 12-month warranty from the arrival date, covering free repair or replacement for quality-related issues under normal operation.

Hebei Tengtian Welded Pipe Equipment Manufacturing Co., Ltd specializes in high-frequency welded pipe equipment, slitting lines, and cold bend steel forming machinery. With a skilled technical team, our products have been exported to South Korea, Vietnam, Indonesia, South Africa, Kazakhstan, and other regions, earning high praise from domestic and international customers.
