60mm High Frequency Welded Pipe Mill for Round and Square Tubes

Name: 60mm High Frequency Welded Pipe Mill for Round and Square Tubes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 89
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 89

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG 89

Product Name:

High Frequency Welded Pipe Mill 60mm Round Tube Mill High Speed Erw Pipe Making

Feature:

High Speed And High Frequency

Other Pipe:

Round Pipe And Square Pipe

Max Size:

30 - 60 Mm

Thickness:

1 . 5 - 4 . 0 Mm

Length:

4 - 6 M

Rollers:

Include

Warranty:

One Year

Key Words:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

60mm round tube mill

high speed round tube mill

erw high frequency welding tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

High Frequency Welded Pipe Mill 60mm Round Tube Mill High Speed ERW Pipe Making

Product Specifications

Feature	High Speed and High Frequency
Pipe Types	Round pipe and square pipe
Maximum Size	30 - 60 mm
Thickness	1.5 - 4.0 mm
Length	4 - 6 m
Included Components	Rollers
Warranty	One year

Machine Overview

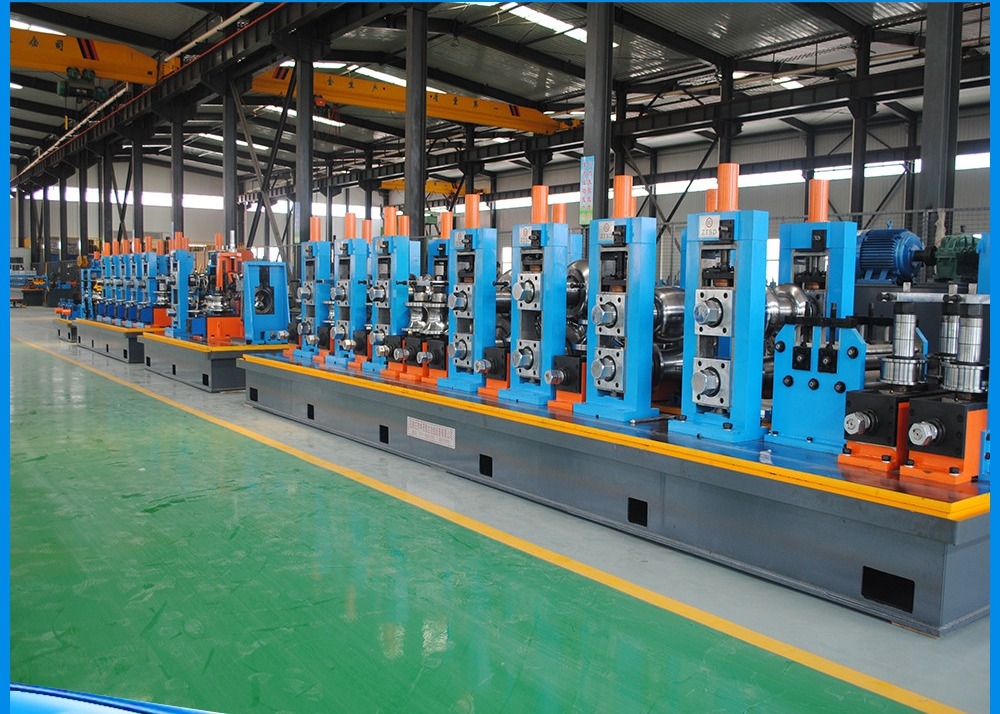

The HG 89 high frequency welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions.

Technical Specifications

Material Specifications

Material	Low carbon steel, galvanized and carbon steel tube
Mechanical Properties	σb≤520Mpa, σs≤340MPa
Strip Width	100 - 190 mm
Strip Thickness	1.5 - 4.0 mm
Coil Inner Diameter	Φ480 - 510 mm
Coil Outer Diameter	Φ1000 - 1600 mm
Coil Weight	≤4T

Welded Pipe Specifications

Pipe Diameter	Φ33 - Φ60 mm
Pipe Thickness	1.5 - 4.0 mm
Finished Pipe Length	4 - 6 m
Cut Length Accuracy	±3 mm
Forming Speed	20 - 70 m/min

Workspace Requirements

100m × 8m, with minimum height of 5m

Note: Can be modified according to actual workshop length

Included Technical Documentation

Instruction Manual of Pipe Mill (provided one month before delivery)
Inspection Certificate (provided at delivery)
Loading Order (provided at delivery)
Layout Drawing (provided one month before delivery)
Ground Base Drawing (provided one month before delivery)
Electrical Principle Diagram
Overall Assembly Drawing of every unit of the line
Part Diagram of Vulnerable Parts

After-Sales Service

Before equipment arrival, our technical service personnel will conduct on-site commissioning, maintenance services, and provide guidance on equipment operation and maintenance. We will also provide technical training for your operation and maintenance staff.

Within 12 months from the date of equipment arrival, if the equipment is damaged due to manufacturing defects and cannot operate properly (when used according to specifications), we will provide free repairs or replacements.
