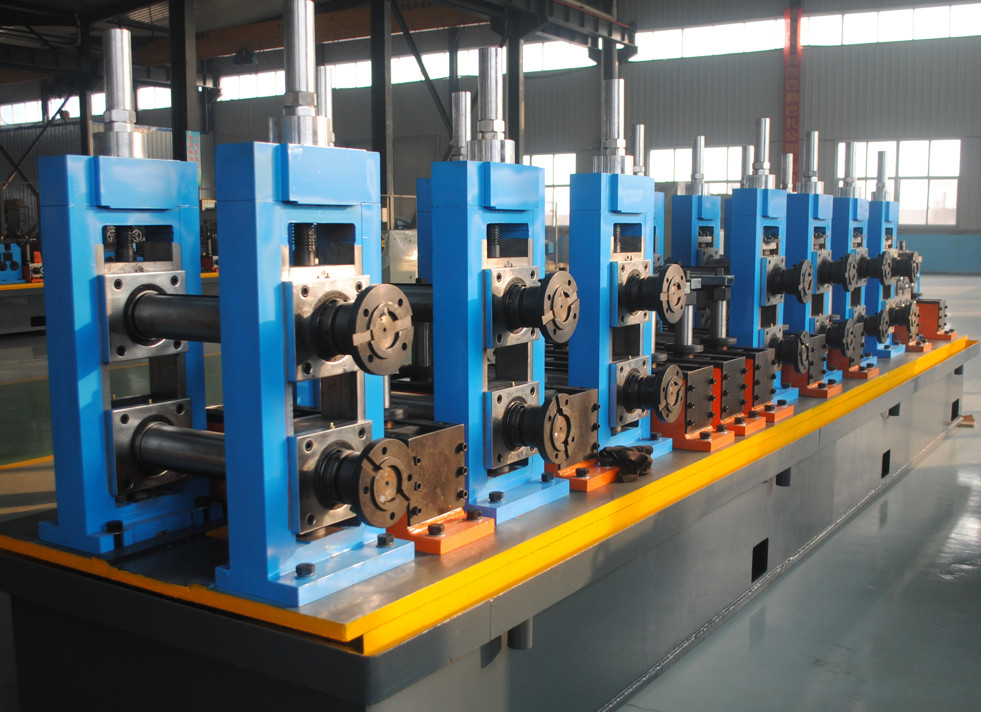

60X60mm Manual or Automatic Steel Welded Pipe Production Line

Name: 60X60mm Manual or Automatic Steel Welded Pipe Production Line
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 60 X 60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	60 X 60

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

60 X 60

Production Name:

Manual Or Automatic 60X60Mm Steel Welded Pipe Production Line Square Tube Mill Machine

Model:

60X60

Feature:

Manual Or Automatic

Other Pipe:

Round ,square And Rectangular Pipe

Max Size:

60X60 Mm

Thickness:

0 . 5 - 4 . 0 Mm

Length:

6 M - 12 M

Rollers:

Include

Warranty:

One Year

Key Words:

Manual Or Automatic 60X60Mm Steel Welded Pipe Production Line

Highlight:

High Light

Highlight:

60X60Mm Welded Pipe Production Line

60X60Mm Square Tube Mill

Automatically Square Tube Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

6 set/year

Product Description

Manual Or Automatically 60X60Mm Square Tube Mill Steel Welded Pipe Production Line

Product Specifications

Attribute	Value
Production Name	Manual Or Automatic 60X60Mm Steel Welded Pipe Production Line Square Tube Mill Machine
Model	60X60
Feature	Manual Or Automatic
Other pipe	Round, square and rectangular pipe
Max size	60X60 mm
Thickness	0.5 - 4.0 mm
Length	6 m - 12 m
Rollers	Include
Warranty	One year

Product Overview

This high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions for pipe production.

Available Pipe Sizes

Square pipe: 20X20-60X60mm
Rectangular pipe: 20X25-40X80mm
Pipe thickness: 0.5-4.0mm

Technical Specifications

Material Specifications

Material	Low carbon steel, galvanized and carbon steel tube
Mechanical properties	σb≤520Mpa, σs≤340MPa
Strip width	80 - 240 mm
Strip thickness	0.5 - 4.0 mm
I.D of Coils	508 mm
O.D of Coils	1800 mm
Coil Weight	≤ 3T

Welded Pipe Specifications

Pipe Diameter	20X20～60X60 mm
Pipe thickness	1.0 - 3.0 mm
Finish pipe length	6 m
Cut length accuracy	± 2 mm
Forming speed	40 - 100 m/min

Workspace Requirements

100 m X 8 m, at least 5m high

Note: Can be modified according to actual workshop length

Production Process Flow

Coil preparation
Coiling
Uncoiling
Head removal
Leveling
Cutting butt welding
Looper storage
Vertical roller alignment
Delivery
Vertical roller alignment
Forming (13 frames)
High frequency welding
Five rollers extrusion
External burr removal
Smoothing roller
Water cooling device
Sizing machine
Saw cutting
Roller table after sawing
Steel pipe conveying
Collecting and packing
