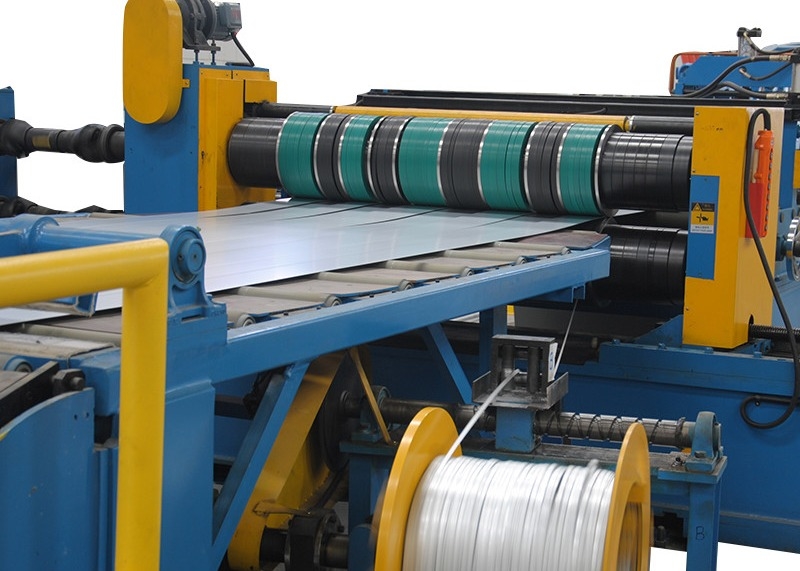

800-2000mm PLC Steel Slitting Machine with 240KW Motor
  • 800-2000mm PLC Steel Slitting Machine with 240KW Motor
  • 800-2000mm PLC Steel Slitting Machine with 240KW Motor
  • 800-2000mm PLC Steel Slitting Machine with 240KW Motor

800-2000mm PLC Steel Slitting Machine with 240KW Motor

Product Details:
Place of Origin: Hebei，China
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: TT240
Detail Information
Place of Origin:
Hebei，China
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
TT240
Nominal Power:
250kw
Warranty:
1 Year
Power:
240KW
Weight:
Max 30 Ton
Control:
PLC
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Coil Width:
800~2000mm
Thickness Range:
1-6mm
Highlight:

High Light

Highlight:

width 800mm automatic slitting machine

,

width 2000mm automatic slitting machine

,

steel coil slitting machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
120 work days
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
40 Sets/Year
Product Description
Width 800-2000mm Automatic Cutter For Steel Slitting Machine
Product Specifications
Attribute Value
Nominal power 250kw
Warranty 1 Year
Power 240KW
Weight Max 30 Ton
Control PLC
After-sales Service Engineers available to service machinery overseas
Coil Width 800~2000mm
Thickness Range 1-6mm
Product Description

The slitting line machine is primarily composed of an uncoiler, feeder, slitter, and recoiler. Its function is to slit a wide coil into specified width strips along the length direction, which can be used as billet for milling, welding pipe, cold bend forming, and stamping. Different material blades can be used to slit various metal coils.

Main Technical Parameters
  • Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
  • Strip thickness: 5~20 mm
  • Strip width: 800~2000mm
  • Max.coil weight: 40000kgs
  • Diameter of leveling rollers & tensioning roller: Φ260
  • Diameter of slitter shaft: Φ420
  • Disc cutters: 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm
  • Diameter of recoiler block: Φ800mm
  • Separating discs: 65Mn, OD250 x ID110 x T10/20mm
  • DC motors for slitter and recoiler: 280KW, 315KW
  • Slitting speed: 0~20 m/min, adjustable
Product Process

Loading coil car → Uncoiler → Straightener device → Pinch roll & leveler & hydraulic shearer → Loop pit → Side guide → Slitter → Transition platform & scrap winder → Loop pit → Tension station → Recoiler → Unloading coil car.

Model Specifications
Model Plate thickness Plate width Steel coil weight Width of finished Shear Speed
3*1250mm 0.5-3.0mm 700-1250mm 25 Ton <40mm 120(m/min)
4*1250mm 0.5-4.0mm 700-1250mm 25 Ton <40mm 120(m/min)
6*1250mm 0.5-6.0mm 700-1250mm 25 Ton <40mm 120(m/min)
3*1600mm 0.5-3.0mm 900-1600mm 30 Ton ≥40mm 120(m/min)
4*1600mm 0.5-4.0mm 900-1600mm 30 Ton ≥60mm 110(m/min)
6*1600mm 1-6mm 900-1600mm 30 Ton ≥60mm 100(m/min)
8*2000mm 2-8mm 900-2000mm 35 Ton ≥70mm 60(m/min)
10*2200mm 3-10mm 900-2200mm 35 Ton ≥80mm 50(m/min)
12*2200mm 3-12mm 900-2200mm 35 Ton ≥100mm 40(m/min)
16*2500mm 4-16mm 900-2500mm 35 Ton ≥100mm 40(m/min)
20*2500mm 6-20mm 900-2500mm 35 Ton ≥100mm 30(m/min)

These models are for reference only. The product range and thickness are adjustable. Our engineering team can design machines according to specific customer requirements. Send inquiry here
