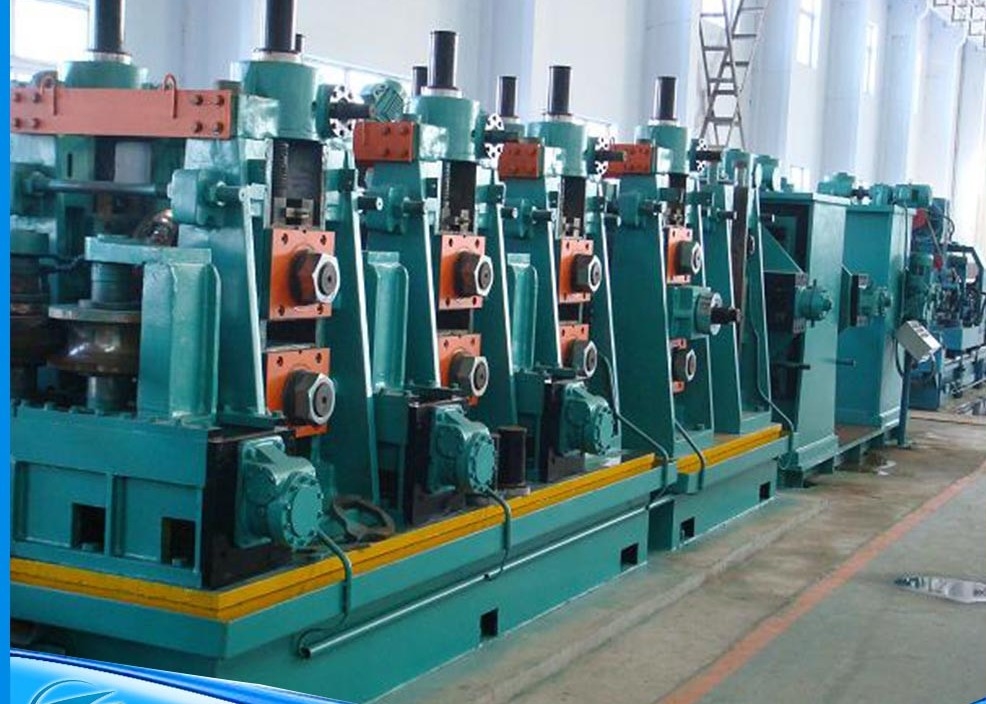

89mm Round Tube Mill Machine for 1-4mm Thick Pipes

Name: 89mm Round Tube Mill Machine for 1-4mm Thick Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW 89
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW 89

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW 89

Production Name:

Tube Mill Machine

Forming Method:

FFX Forming Technology

Running Speed:

Max. 60 M / Min

Pipe Shape:

Round

Pipe Diameter:

45 - 102 Mm

Max.Thickness For Round Pipe:

1 . 0 - 4 . 0 Mm

Welding Type:

High Frequency Welding

Key Words:

Round Shape Tube Rolling Mill Tube Mill Machine

Highlight:

High Light

Highlight:

89mm erw tube mill machine

round shape erw tube mill machine

1mm thick high speed tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

4 months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

89 Mm Round Shape ERW Tube Mill Machine For 1mm Thick Pipe

Product Specifications

Attribute	Value
Production Name	Tube Mill Machine
Forming Method	FFX Forming Technology
Running speed	Max. 60 m/min
Pipe shape	Round
Pipe Diameter	45 - 102 mm
Max.Thickness for Round Pipe	1.0 - 4.0 mm
Welding Type	High Frequency Welding

Product Description

The HG89 high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions.

Production Range: Round pipe: 45-102 mm | Square pipe: 40×40-60×80 mm | Thickness: 1.0-4.0 mm

As a CE & ISO9001:2008 certified manufacturer and supplier in China, our machines are exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, and Mexico, recognized for their high quality, reliable performance, and long service life.

Technical Specifications

Raw Material: Low carbon steel and low alloy constructional steel (σb≤380Mpa, σs≤275MPa)
Steel Strip Dimensions: ID: Φ508 mm | OD: Φ1800 mm | Max Coiler Weight: 6T
H.F. Welder: 300kw High-frequency welder
Line Speed: Max. 60 m/min
Tube Length: 4-6m
Cutting Accuracy: ±1.5 mm
Line Dimensions: Approximately 80 × 6 m

Line Composition

Hydraulic uncoiler
Automatic Shear and welder
Spiral horizontal accumulator
Forming and Sizing Mill (including forming stand, weld seam guide stand, squeeze roll stand, welding bead cutter, water cooling unit, sizing stand, and gear box)
Cold saw
Run out table
300Kw High Frequency Welder
Drive system
Zinc spray machine
Electronic control system
Hydraulic system
