Automatic Carbon Steel Coil Slitting Line 0.5-4mm 120m/min
  • Automatic Carbon Steel Coil Slitting Line 0.5-4mm 120m/min
  • Automatic Carbon Steel Coil Slitting Line 0.5-4mm 120m/min
  • Automatic Carbon Steel Coil Slitting Line 0.5-4mm 120m/min
  • Automatic Carbon Steel Coil Slitting Line 0.5-4mm 120m/min
  • Automatic Carbon Steel Coil Slitting Line 0.5-4mm 120m/min
  • Automatic Carbon Steel Coil Slitting Line 0.5-4mm 120m/min

Automatic Carbon Steel Coil Slitting Line 0.5-4mm 120m/min

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ，ISO9001 ，BV
Model Number: SJ1600*4
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE ，ISO9001 ，BV
Model Number:
SJ1600*4
Name:
Carbon Steel Machine Automatic High Precision Steel Coil Slitting Line Machine
Special Require:
Can Design According To The Customer
Steel Thickness:
0.5-4.0mm
Product Speed:
Max 120m/min
Material:
Carbon Steel,stainless Steel
Plate Width:
900-1600mm
Width Of Finish:
>40mm
Weight Of The Coil:
30t
Highlight:

High Light

Highlight:

sheet metal slitter machine

,

strip slitting machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
packed in seaworthy material
Delivery Time:
3 months
Payment Terms:
Western Union,L/C,T/T
Supply Ability:
100 set per year
Product Description
Carbon Steel Machine Automatic High Precision Steel Coil Slitting Line Machine
Product Attributes
Attribute Value
Name Carbon Steel Machine Automatic High Precision Steel Coil Slitting Line Machine
Special Requirement Can design according to the customer
Steel Thickness 0.5-4.0mm
Product Speed Max 120m/min
Material Carbon steel, stainless steel
Plate Width 900-1600mm
Width of Finish >40mm
Weight of the Coil 30t
Product Description

The slitting line, also known as slitting machine or longitudinal cutting line, is designed for uncoiling, slitting, and recoiling steel rolls into required widths. This high-precision machine processes various materials including cold/hot rolled steel, silicon steel, tinplate, stainless steel, and color coated steels.

  • Function: Longitudinal cutting of steel coils and rewinding slit strips into coils
  • Advantages: Easy operation, high cutting precision, material efficiency, and infinite speed capability
  • Structure: Composed of decoiler, feeding device, slitting machine, and recoiler
  • Materials Processed: Galvanized steel, stainless steel, tinplate, silicon steel, copper, and aluminum

Applications: Steel factories, transformers, electrical motors, automotive, building materials, doors, and packaging industries.

Main Technical Parameters
No Name Unit Parameters
1 Materials Carbon and galvanized steel coils
2 Tensile strength Mpa δb≤400 ,δS280
3 Thickness mm 0.5-4
4 Width(max) mm 900-1600
5 Coil ID mm Φ508
6 Coil OD mm Φ≤1800
7 Speed line m/min >80
8 Blades specification Φ260mmXΦ380mmX15mm
9 Blades material 6CRW2SI
10 Knife pivot diameter mm Φ260
11 Knife pivot material 40Cr
12 Power 380V/50Hz/3Ph
13 Capacity kw 200
14 Whole line dimension m 25m(L)x8m(W)
15 Operator needed 1 mechanical engineer, 2 common workers
16 Line direction From right to left (face to machine)
17 Machine color Customized
Process Flow

From right to left: Entry coil car → Hydraulic decoiler → Hydraulic press and pinch device → Hydraulic cutter → Looper 1 → Side guide device → Slitter → Scrap winder → Looper 2 → Tension stand → Recoiler → Exit coil car

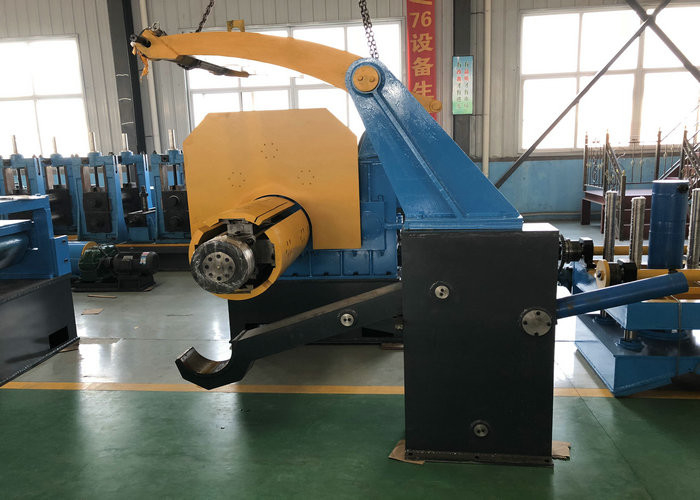

Automatic Carbon Steel Coil Slitting Line 0.5-4mm 120m/min 0
Equipment Components
No Name Quantity
1 Entry coil car 1 set
2 Hydraulic decoiler 1 set
3 Hydraulic press and pinch device 1 set
4 Hydraulic cutter 1 set
5 Looper 1 1 set
6 Side guide device 1 set
7 Slitter 1 set
8 Scrap winder 1 set
9 Looper 2 1 set
10 Tension stand 1 set
11 Recoiler 1 set
12 Exit coil car 1 set
13 Hydraulic system 1 set
14 Electrical system 1 set
For detailed machine parameters, please provide your sheet specifications including: coil I.D (mm), coil O.D (mm), max coil weight (Ton), main material, max coil thickness (mm), max coil width (mm), voltage/Hz, etc.
Our Services
  • On-site engineer for installation and operator training
  • One year quality guarantee with lifetime repair service
  • Comprehensive pre-sale (workshop design, production planning) and after-sale services
  • Option for extended engineer support (months to 1 year) to optimize output and reduce costs
  • Complete project design for stainless/carbon steel pipe making
  • Full responsibility for loading and shipping
