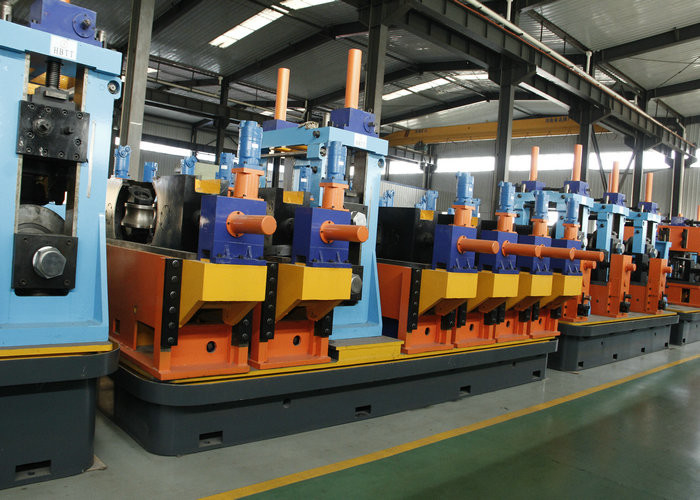

Automatic ERW Tube Mill for 21-63mm Pipes 50m/min Speed

Name: Automatic ERW Tube Mill for 21-63mm Pipes 50m/min Speed
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

Automatic ERW Tube Mill For Pipe Making Machine Max 50m/Min Speed

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Product Speed:

Max 50m/min

Max.Thickness For Square Pipe:

0.8-3.0mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Keywords:

Pipe Making Machine

Highlight:

High Light

Highlight:

erw tube mill

stainless tube mills

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

2.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

Automatic ERW Tube Mill For Pipe Making Machine

Key Specifications

Material Compatibility	Carbon steel, stainless steel, low alloy steel
Pipe Diameter Range	21 - 63mm
Maximum Production Speed	50m/min
Max Thickness for Square Pipe	0.8-3.0mm
Certifications	CE, ISO
Worm Gearing Speed	Max 80m/min

Available Models and Specifications

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

Production Process

Uncoiler → Shear & end welder → Horizontal accumulator → Leveling → Forming → HF welding → Scraper → Cooling → Sizing → Straightening → Flying saw cut off → Run out table

Technical Specifications

Material	Hot/cold rolled carbon steel or Galvanized steel coil
Finished Products	Round pipe: 25.4-63.5mm Square pipe: 20×20-50×50mm Rectangle pipe: 15×25-60×40mm
Thickness	1-1.5mm
Place Requirement	Separate layout (Input, Side output)
Production Speed	0-80m/min
Cutting Motor	15Kw
Cutting Type	Hot friction saw
Cutting Tolerance	±3mm
Tracking Motor	11Kw
Pneumatic System	0.4-0.7Mpa

Installation & Service

Installation (Optional)

Technician will be sent to buyer's factory for installation (buyer provides assistance)

Installation period: 5 days (buyer must prepare materials and foundation in advance)

Installation fee: USD1,000 per set (paid before technician departure)

Training period: 2 days (on-site operation training available)

Buyer covers technician's travel expenses, accommodation, food, transportation, and insurance

Goods considered standard if no installation request within 3 months of arrival
