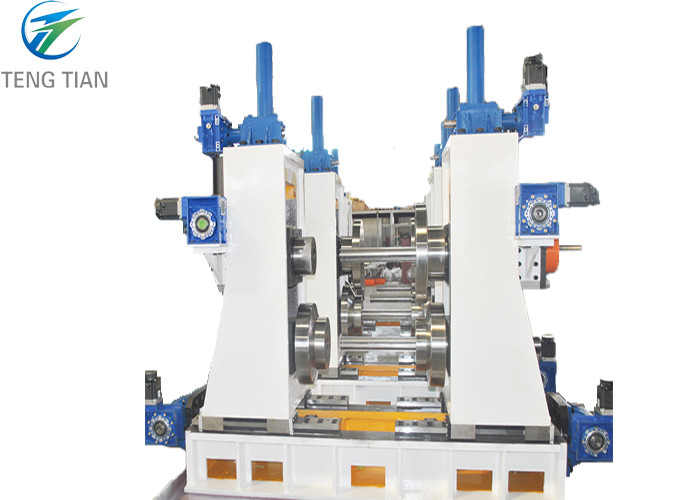

Automatic Tube Mill for High-Frequency Welded Steel Pipes 50-101.6mm

HG114 High-Frequency Welded Pipe Mill Line is designed to produce welded pipes of 50～101.6mm in diameter and 1.0～4.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Material Specifications:

• Conforming to the YB189-64 standard
• Material: Low carbon steel and low alloy constructional steel
• Mechanical properties: σb≤520Mpa, σs≤340MPa
• Strip Width: 160～320mm
• Strip Thickness: 1.0～4.0mm
• Inner Diameter of Coils: φ480～φ510mm
• Outer Diameter of Coils: φ1000～φ1600mm
• Coil Weight: ≤5T

Pipe Specifications:

• Round Pipe Diameter: φ50～φ101.6mm
• Wall Thickness of Pipes: 1.0～4.0mm
• Fixed Cutting length: 4～6m
• Pipe-cutting Precision: 0～3mm
• Forming Speed: 20～60m/min

• Scroll up
• Uncoil
• Flattening
• End Shear & Butt Welding
• Accumulator
• Forming
• High-frequency induction welding
• Removing external burr
• Cooling
• Sizing
• Cutting
• Checking & Collecting
• Accessing Warehouse

The company has a strong technical ability, strong business ability, and vibrant team. Through the unremitting efforts of all staff, in recent years the company has occupied most of the domestic market, and exported to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and other dozens of countries and regions, receiving positive feedback from domestic and foreign customers.

• We will send the engineer for the installation and training your workers how to operate this machine in correct way.
• One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
• We supply the pre-sell and after-sell service including workshop design, production output design, installation and training.
• We can also send the engineer working for you several months or 1 year to help improve output, reduce waste and decrease cost.
• We supply pre-sell service - Design for whole project for stainless steel pipe making/carbon steel pipe making.
• We will be responsible for the loading and shipping.

Our company specializes in the production of pipe mill, slitting line, cold roll forming, stainless steel pipe mill and other equipment. On the basis of the introduction of the advanced technology of Japan, the company is innovative and the machines are manufactured in strict accordance with the standard of Japan. Advanced configuration, stable quality, excellent performance, with excellent market visibility and reputation, our machine has reached the world's leading level.

Our equipment has been exported to dozens of countries and regions such as Egypt, Greece, South Korea, Vietnam, Indonesia, South Africa, etc., and received favorable comments from domestic and foreign customers.
