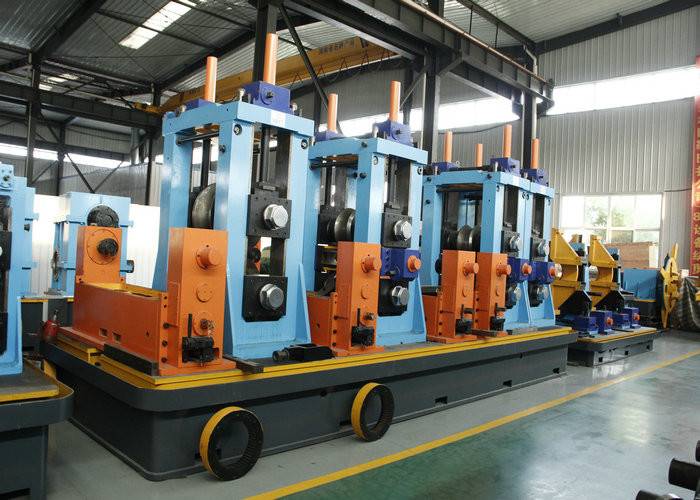

Automatic Tube Mill Machine for Carbon Steel 21-63mm Diameter
  • Automatic Tube Mill Machine for Carbon Steel 21-63mm Diameter
  • Automatic Tube Mill Machine for Carbon Steel 21-63mm Diameter
  • Automatic Tube Mill Machine for Carbon Steel 21-63mm Diameter

Automatic Tube Mill Machine for Carbon Steel 21-63mm Diameter

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG60
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Pipe Diameter:
21 - 63mm
Product Speed:
Max 50m/min
Max.Thickness For Square Pipe:
0.8-3.0mm
Certification:
CE ISO
Worm Gearing:
Max.80m/min
Name:
Tube Mill Machine
Highlight:

High Light

Highlight:

carbon steel tube mill

,

tube making machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
3.5 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
70 set per year
Product Description
Professional Automatic Tube Mill Machine
Product Attributes
Attribute Value
Material Carbon steel, Stainless steel, Low alloy steel
Pipe Diameter 21 - 63mm
Product Speed Max 50m/min
Max.Thickness for Square Pipe 0.8-3.0mm
Certification CE ISO
Worm Gearing Max.80m/min
Name Tube Mill Machine
Product Description
High-frequency pipe welded machinery is the special equipment to produce welded pipe of low carbon steel or low alloy steel material. The process involves feeding steel belt into the machinery, turning it into tube by forming roller, then using high-frequency proximity effect and skin effect to reach welding temperature. The welding is completed under squeezing roller extrusion, then through cooling, sizing and straightening to get the required steel pipe.
Technical Process
  • Uncoiler
  • Straightening end
  • Pipe straightener
  • Shear & Welder
  • Storage
  • Forming, H.F. welding
  • Sizing mill
  • Flying saw
  • Pipe straightener used for original pipe
  • Flatter
  • Hydraulic or scateless test equipment
  • Roller conveyor and conveyor table
  • Packing device
  • Electric control system
Specifications
Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m²)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
