Carbon Square Tube Mill 30m/Min 5mm BV Pipe Rolling Machine

Name: Carbon Square Tube Mill 30m/Min 5mm BV Pipe Rolling Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG140
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG140

Detail Information

Place of Origin:

Hebei，China

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG140

Mill Name:

Carbon 30m/Min 5mm BV Pipe Rolling Mill Square Tube Mill

Warranty:

1 Year

Voltage:

380V/220V

Outer Diameter:

89 - 140 Mm

Thickness:

1 - 5mm

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Shape:

Rectangle,round,square

Material:

Low Alloy Constructional Steel

Highlight:

High Light

Highlight:

30m/min pipe rolling mill

5mm pipe rolling mill

bv pipe rolling mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

40 Sets/Year

Product Description

Carbon 30m/Min 5mm BV Pipe Rolling Mill Square Tube Mill

Product Attributes

Mill Name	Carbon 30m/Min 5mm BV Pipe Rolling Mill Square Tube Mill
Warranty	1 Year
Voltage	380V/220V
Outer Diameter	89 - 140 mm
Thickness	1 - 5mm
After-sales Service	Engineers available to service machinery overseas
Pipe shape	Rectangle, round, square
Material	Low alloy constructional steel

Product Description

This high-performance pipe rolling mill is designed to produce welded pipes of 60-140mm in diameter with 1.5-5.0mm wall thickness, including square, rectangular, and deformed pipes of corresponding sizes. The production line incorporates innovative design and advanced technology for convenient operation and maintenance.

Technical Specifications

Adaptable Materials
Steel strip	Cold rolled steel strip, Hot rolled
Material	Low alloy constructional steel, Low carbon steel
Features	δs≤345Mpa, δb≤610Mpa
Processing Range
Round pipe	Φ89-Φ140mm
Square & Rectangular pipe	50x50-110x110mm
Thickness
Round pipe	1.5-5.0mm
Square & Rectangular pipe	1.5-4.5mm
Installed capacity	800KVA
Water consumption	50m³/h
Solid-state high-frequency Welder	300KW or 400KW
Workshop Requirements	50m × 12m × 6m (L×W×H)
Forming speed	40-60m/min

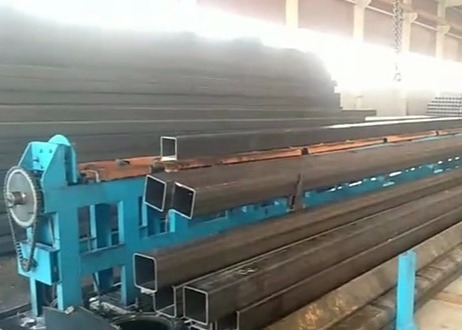

Product Images

Decoiler: Double mandrel type with coil loading car and end straightener

Key Components

Horizontal Accumulator

Type: Horizontal, cage spiral loop
Original: China
Function: Stores strip material to allow time for shear welding of strip ends.

ERW Main Equipment

Type: Normal, high precision, automatic
Brand: TT
Original: China
Features: Advanced F.F or F.F.X forming system with Germany COPRA rollers design software.

Cutting System

Type: Cold cutting saw, flying saw
Brand: TT
Original: China
Function: Precisely cuts pipes to length during continuous high-speed production.

Production Process
