Home > products >
Welded Pipe Mill
>
Carbon Steel ERW Pipe Mill Machine 21-63mm Diameter 4-10mm Thickness
  • Carbon Steel ERW Pipe Mill Machine 21-63mm Diameter 4-10mm Thickness
  • Carbon Steel ERW Pipe Mill Machine 21-63mm Diameter 4-10mm Thickness
  • Carbon Steel ERW Pipe Mill Machine 21-63mm Diameter 4-10mm Thickness
  • Carbon Steel ERW Pipe Mill Machine 21-63mm Diameter 4-10mm Thickness

Carbon Steel ERW Pipe Mill Machine 21-63mm Diameter 4-10mm Thickness

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG60
Product Name:
Carbon Steel ERW Pipe Mill Machine / Pipe Tube Mill Max 80m/Min Worm Gearing
Product Speed:
Max 50m/min
Pipe Diameter:
21 - 63mm
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Cutting Saw:
Friction Saw Cutting
Worm Gearing:
Max.80m/min
Pipe Thickness:
4.0-10.0mm
Keywords:
Carbon Steel ERW Pipe Mill
Highlight:

High Light

Highlight:

erw tube mill

,

slitting line machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
3 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 set per year
Product Description
Carbon Steel ERW Pipe Mill Machine / Pipe Tube Mill Max 80m/Min Worm Gearing
Product Specifications
Attribute Value
Product Speed Max 50m/min
Pipe Diameter 21 - 63mm
Material Compatibility Carbon steel, stainless steel, low alloy steel
Cutting Saw Friction Saw Cutting
Worm Gearing Max. 80m/min
Pipe Thickness 4.0-10.0mm
Product Description

ERW high frequency welding carbon steel water supply pipe production mill featuring advanced aperture technology, PLC automatic control system, and digital speed regulating unit for reliable operation and easy maintenance.

Key Features
  • Specialized for producing Carbon High Frequency Welded Pipe Mill
  • Constructed with refined materials for high precision
  • Includes forming, welding, sizing and straightening devices
  • Complete equipment from decoiler to fixed length-cutting saw
  • Adjustable rolling speed based on pipe diameter and wall thickness
Production Line Process
  1. Raw material (strip steel roll)
  2. Material feeding
  3. End cutting and butt welding (hand welding)
  4. Strip storage cage
  5. Material feeding and forming
  6. High frequency welding
  7. Removing outer burr
  8. Cooling water jacket
  9. Fix the diameter and straightening
  10. Cut off with flying saw
  11. Material unloading (Manually stow and bind up)
  12. Inspection
  13. Storehouse
Technical Parameters
Description WB12 WB25 WB32 WB50
Diameter of welded tubes Φ7-25mm Φ8-32mm Φ13-50mm Φ20-60mm
Wall thickness of welded tubes 0.3-1.0mm 0.4-1.5mm 0.6-1.8mm 0.8-2.7mm
Speed of tube welding 90M/min 90M/min 90M/min 70M/min
Power of major motor 22KW 37KW 55KW 75KW
Power of high frequency welder 60KW 60KW 100KW 100KW
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20

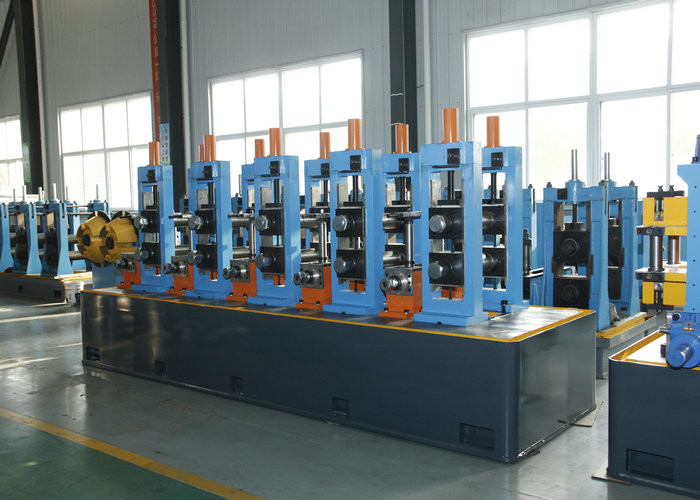

Carbon Steel ERW Pipe Mill Machine 21-63mm Diameter 4-10mm Thickness 0
Carbon Steel ERW Pipe Mill Machine 21-63mm Diameter 4-10mm Thickness 1
